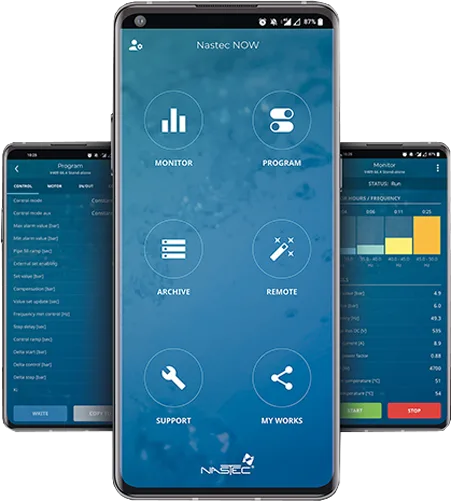

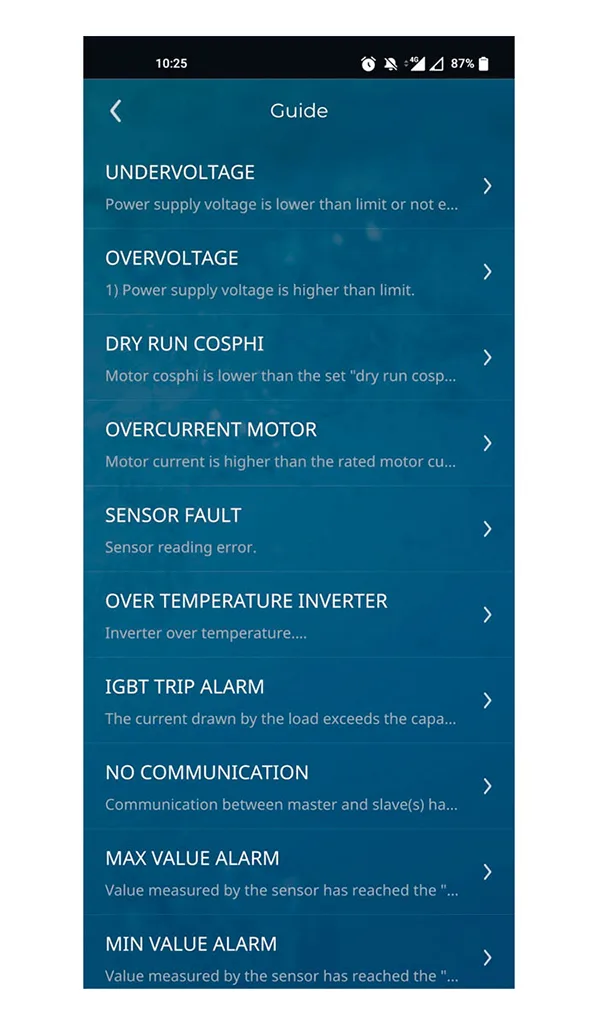

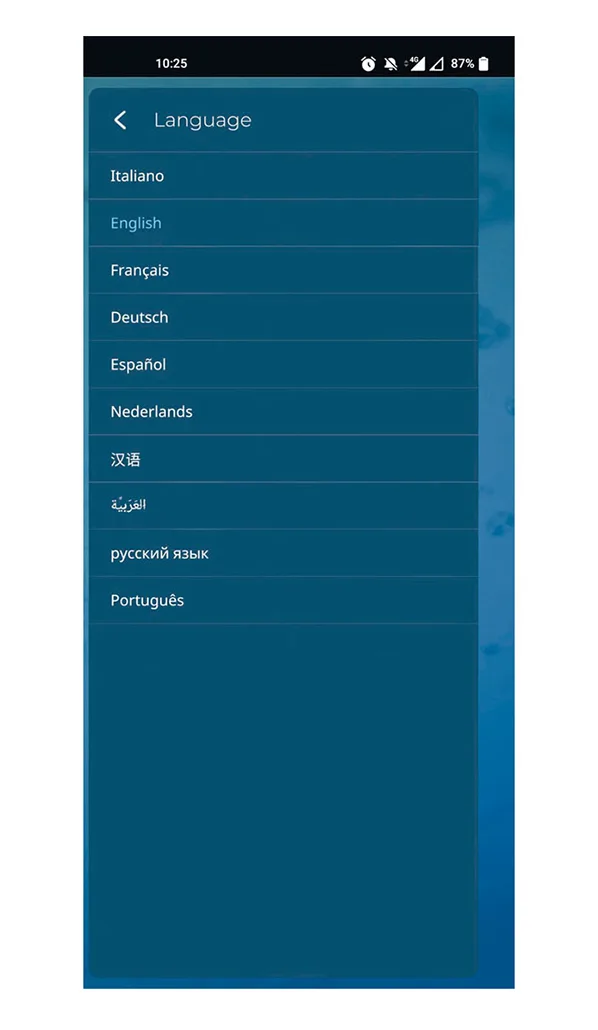

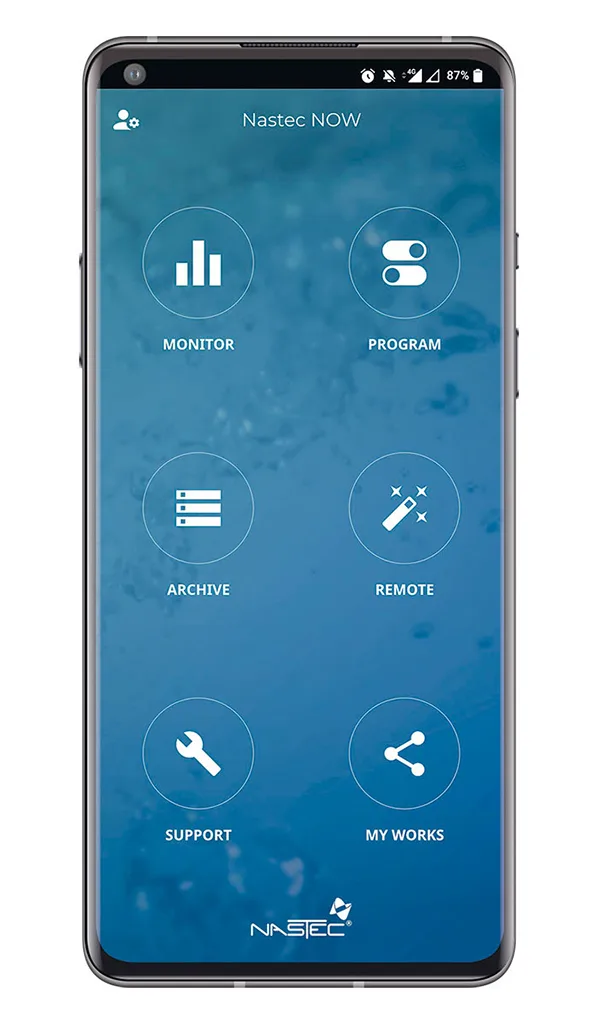

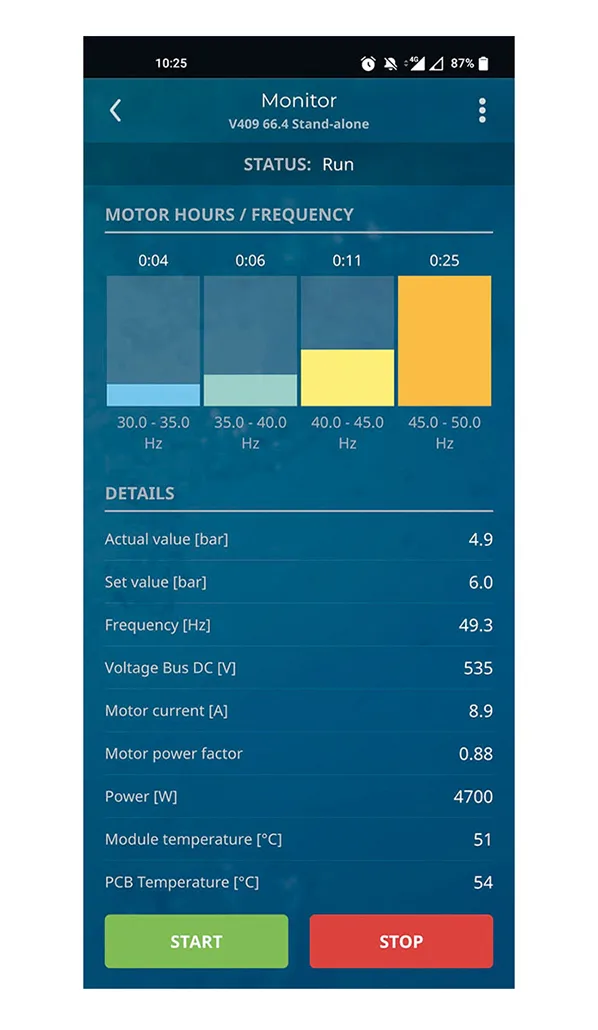

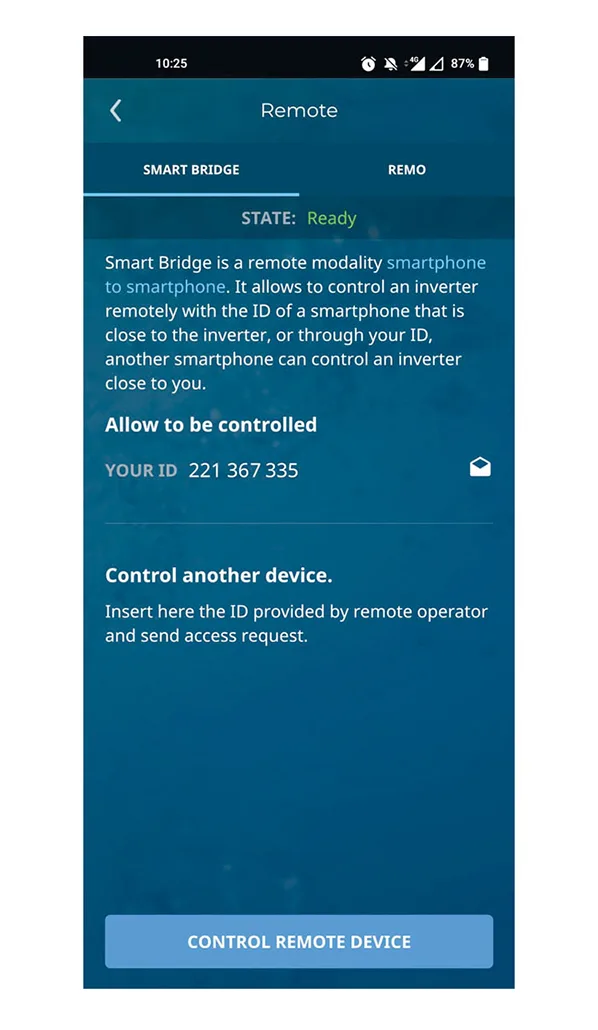

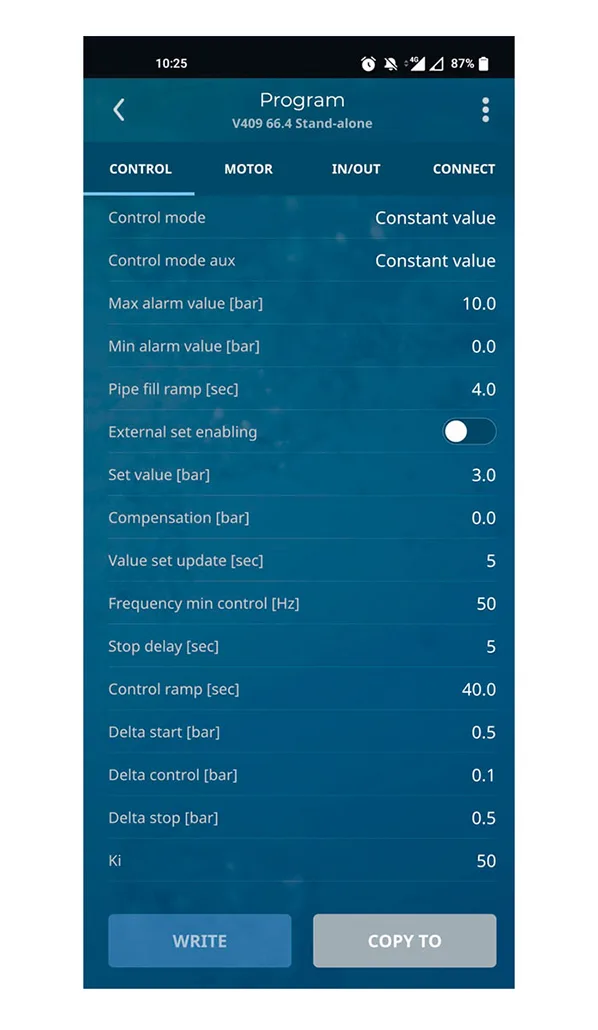

Thanks to Nastec NOW App it is possible to communicate with all Nastec SMART Bluetooth® devices

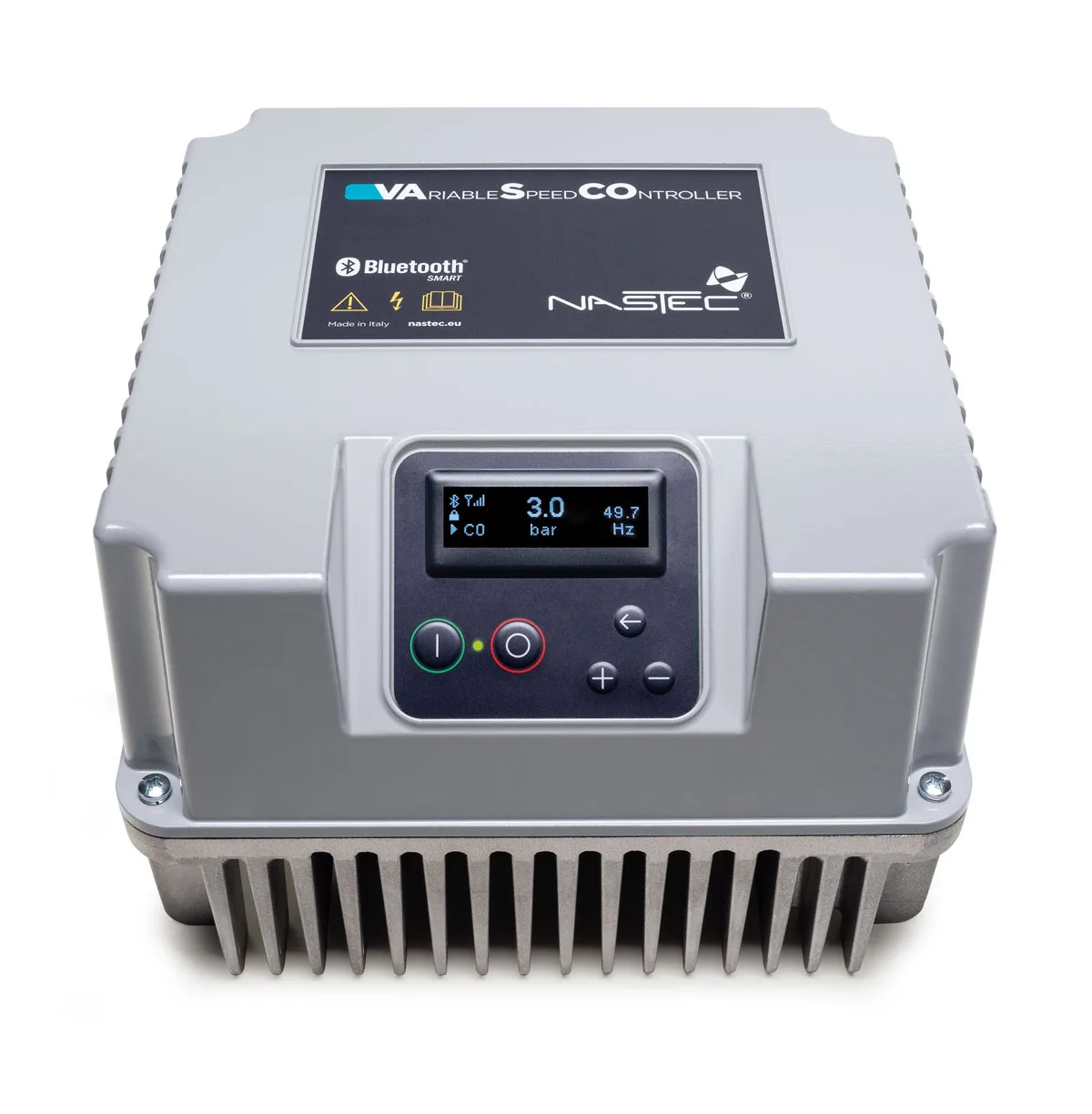

Variable speed controller for pumps

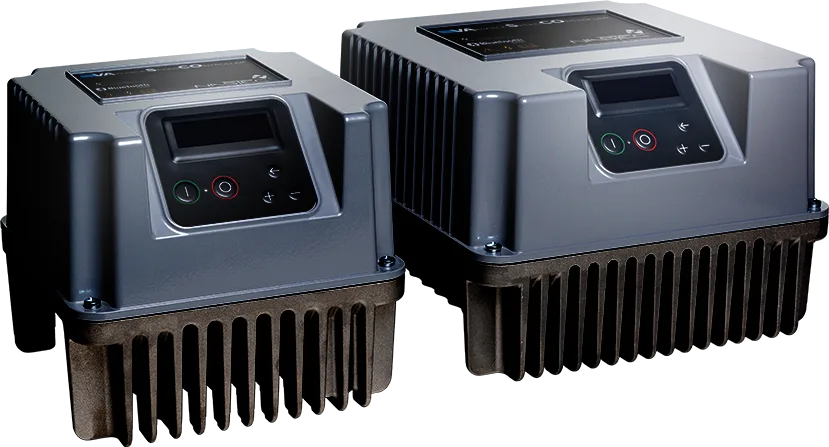

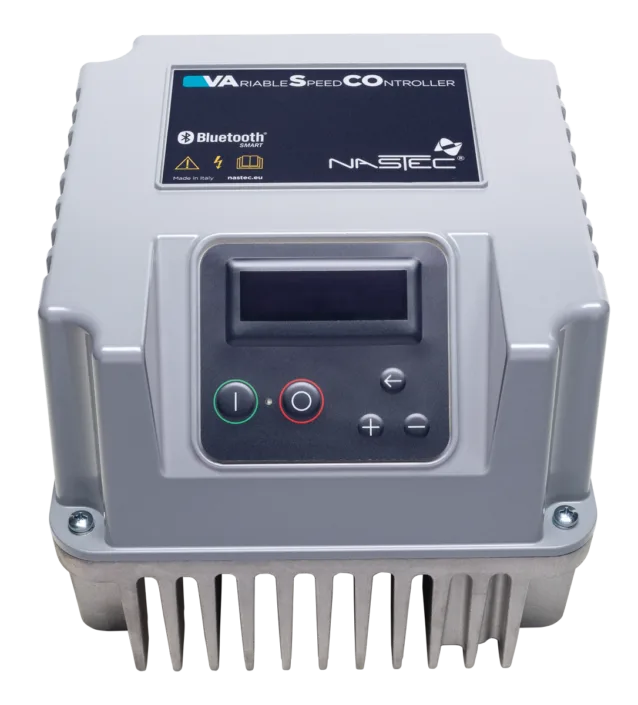

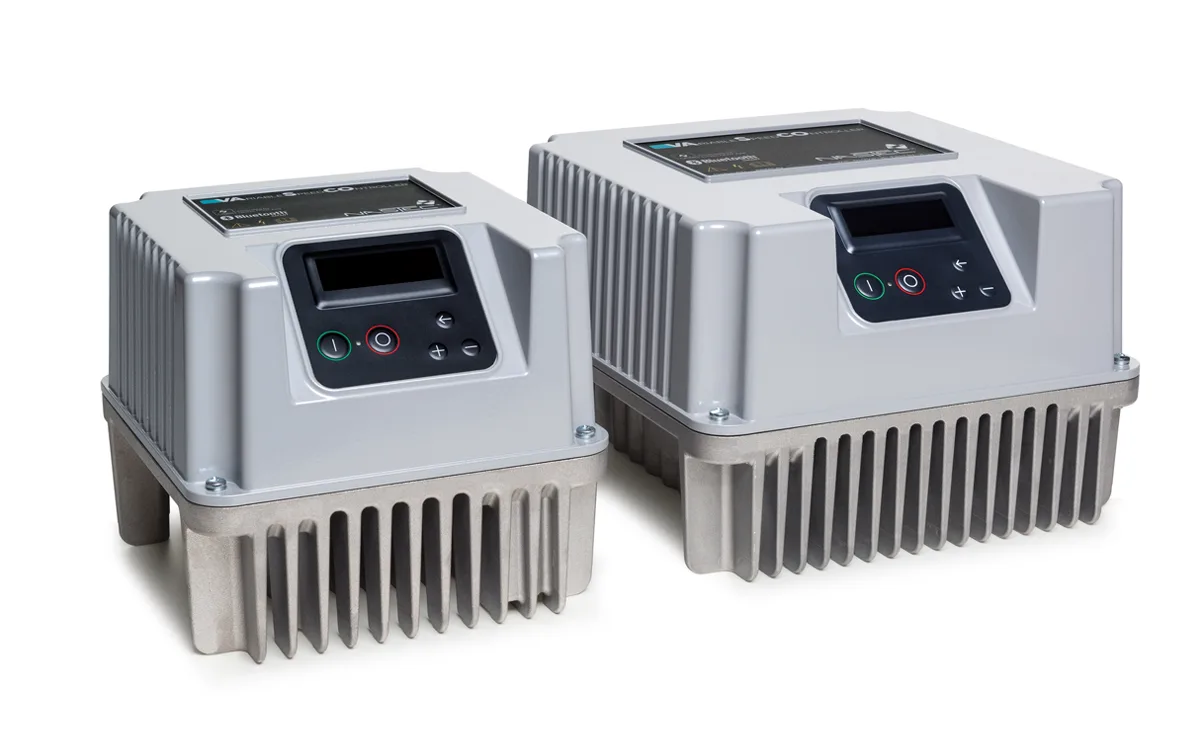

VASCO – VAriable Speed COntroller is a purpose-built family of variable frequency drives, designed to control and protect pumping systems based on changing pump speed. From water supply for domestic, irrigation, commercial and industrial applications, to heating and air conditioning, from filtering to pressure washing, the range perfectly fits any new or existing application ensuring: energy and cost saving simplified installation longevity of pumping system greater reliability

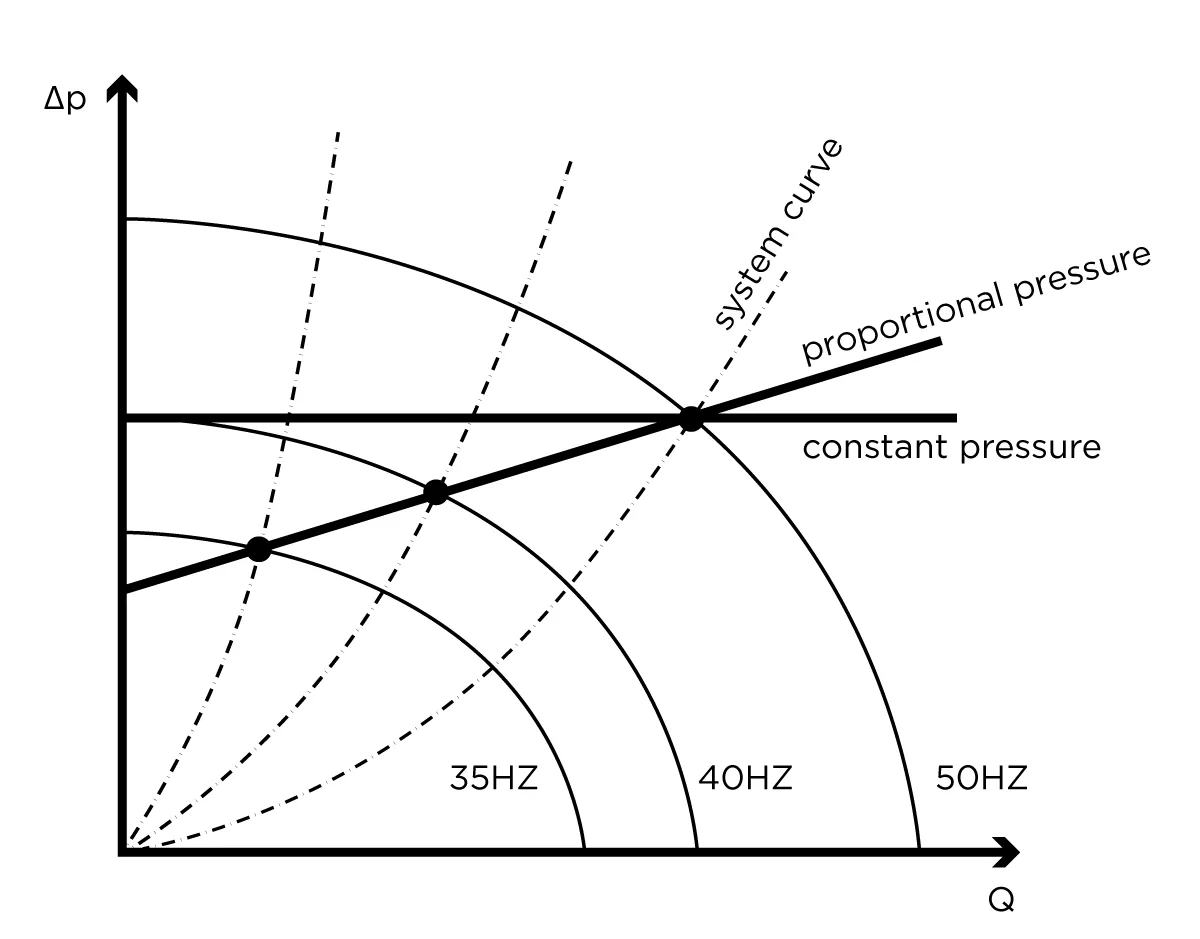

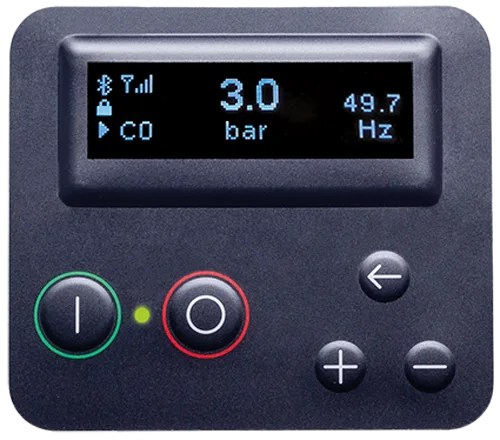

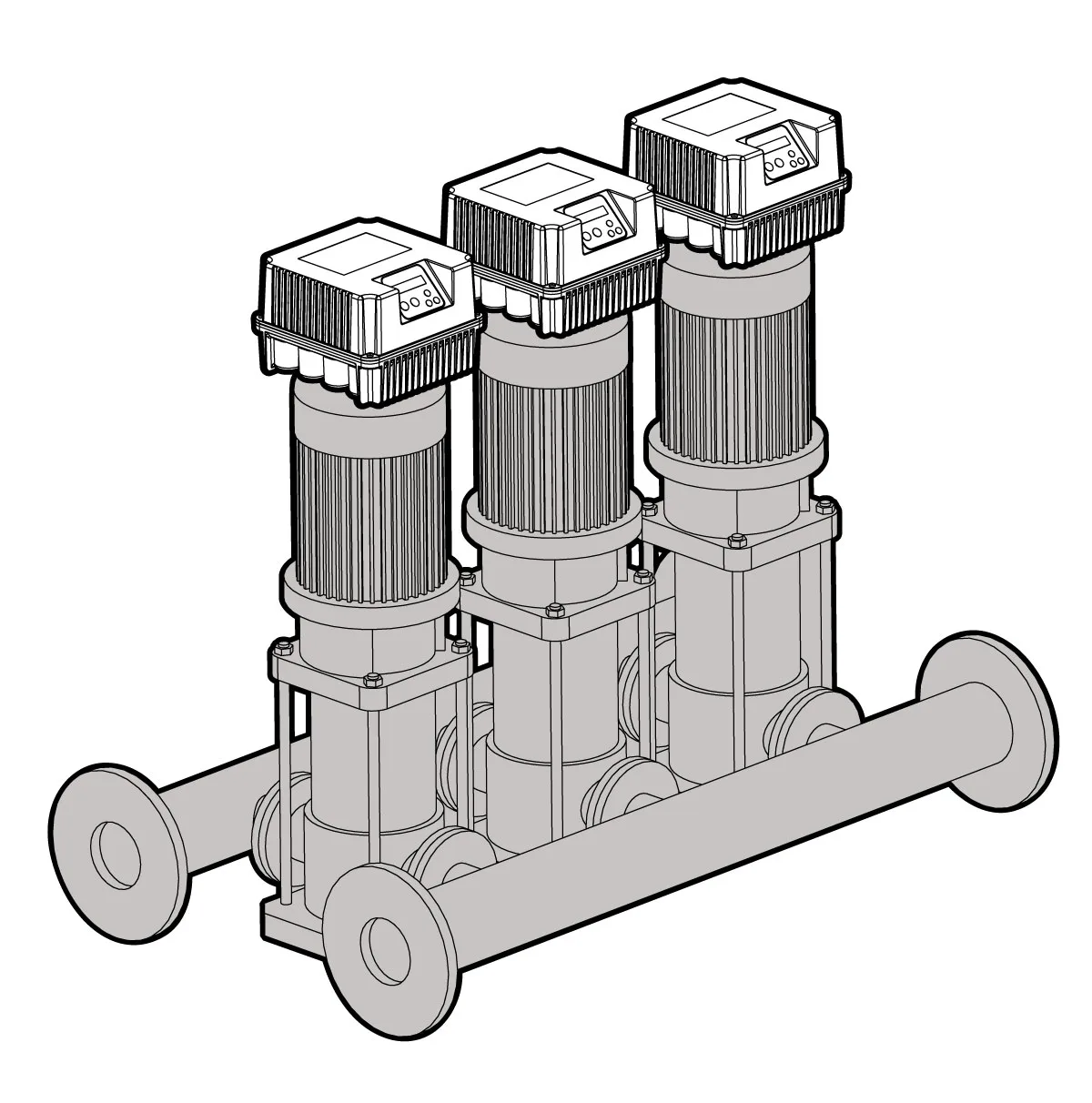

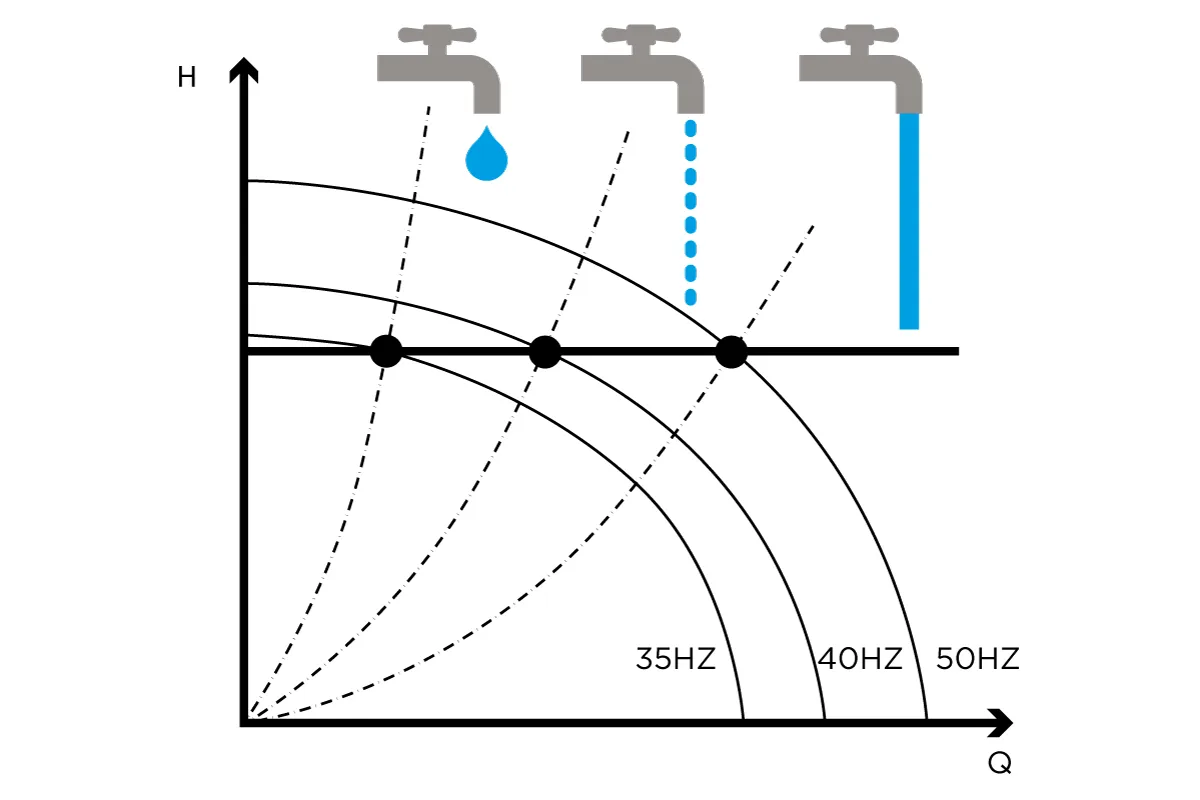

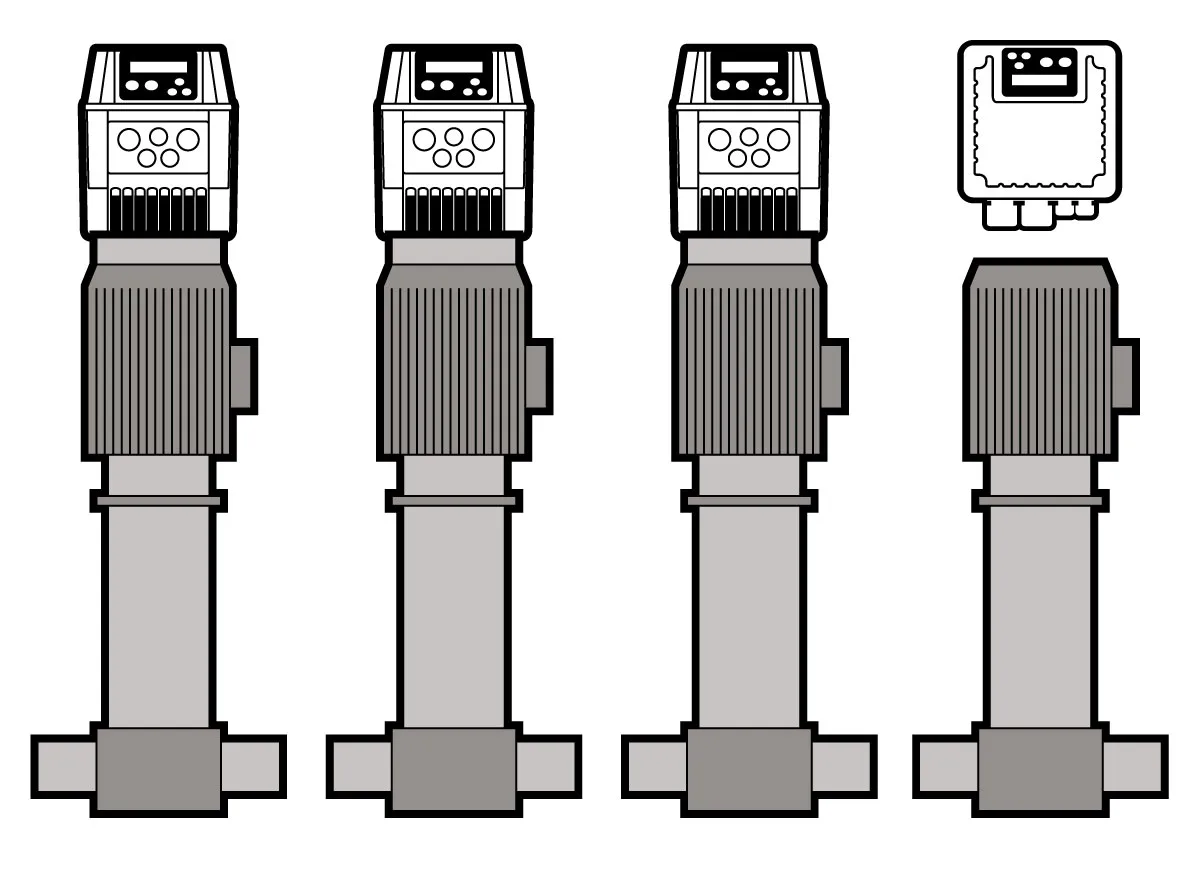

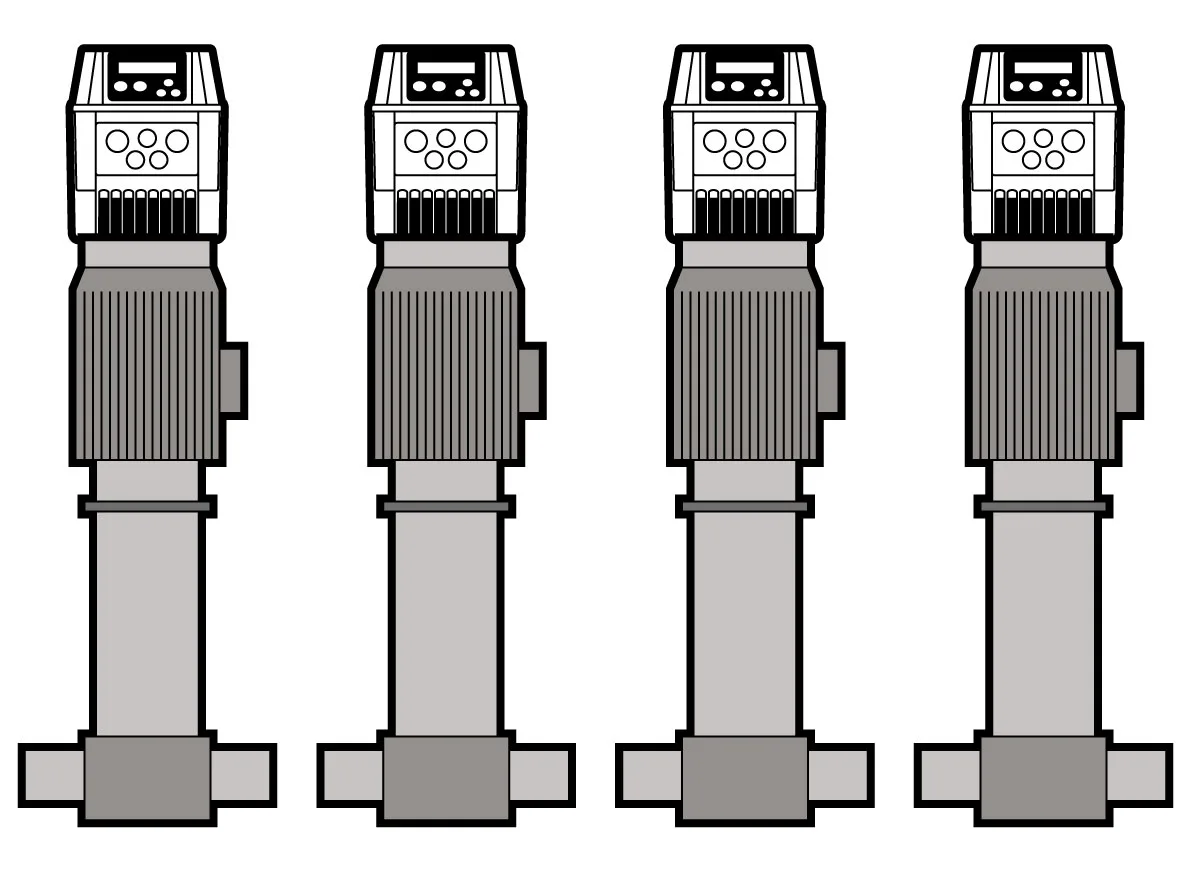

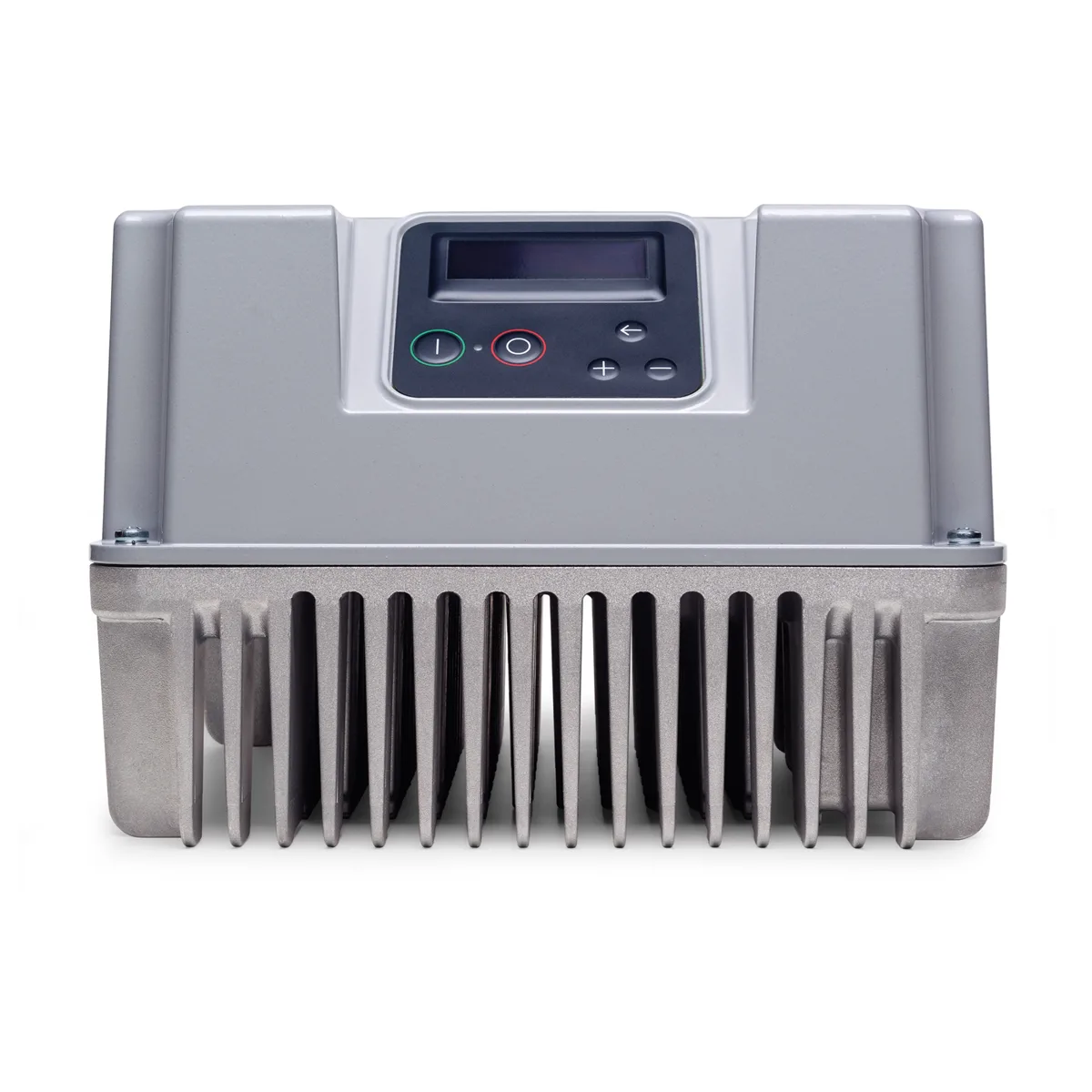

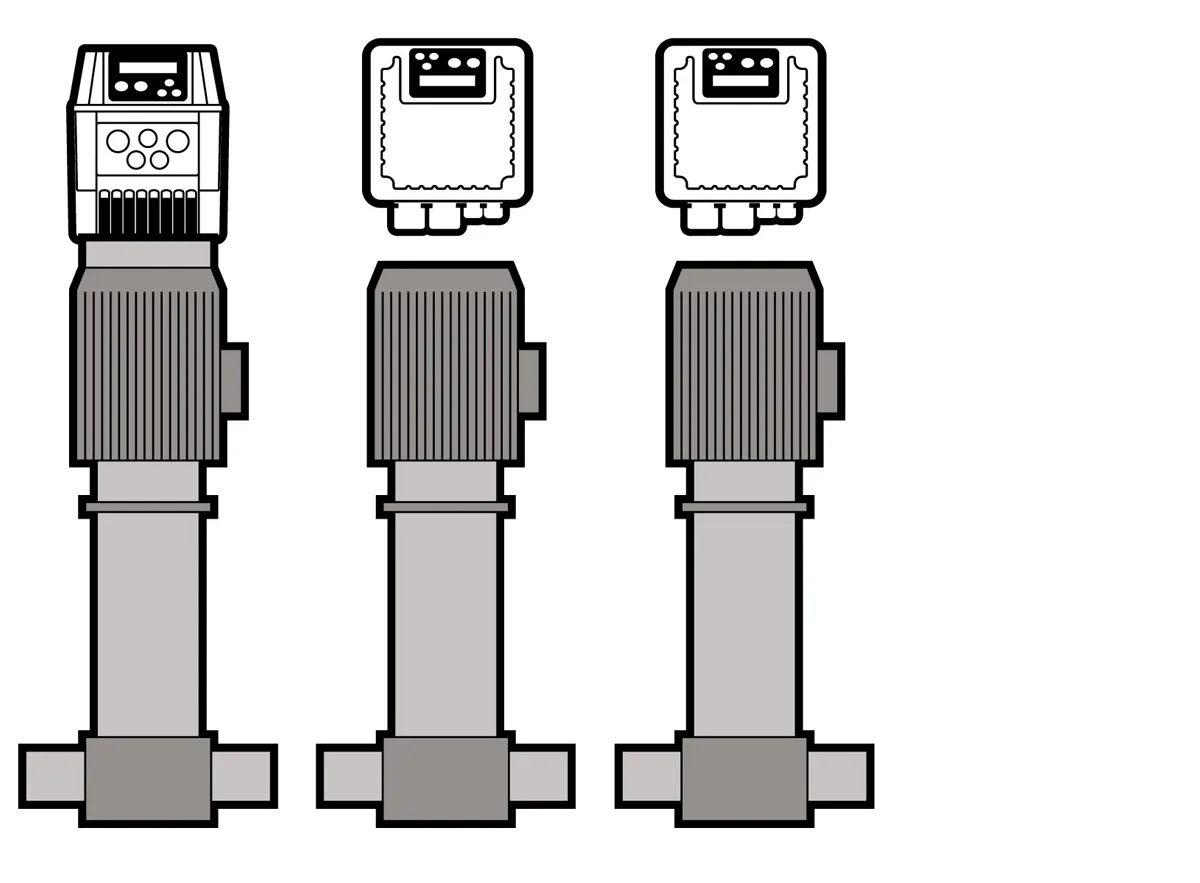

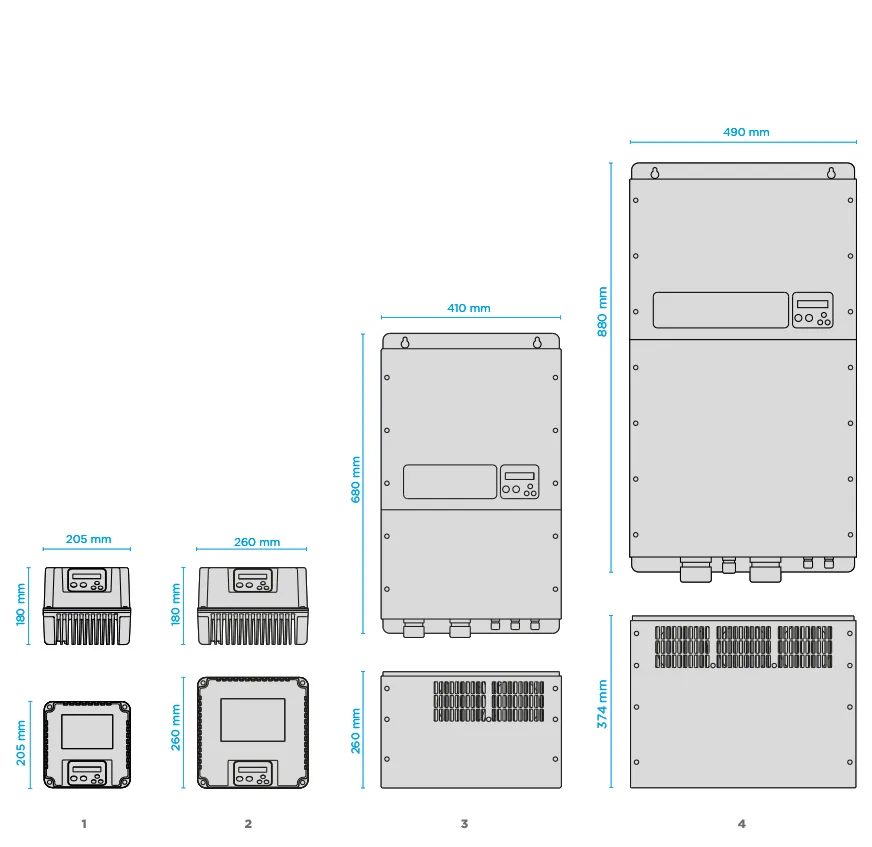

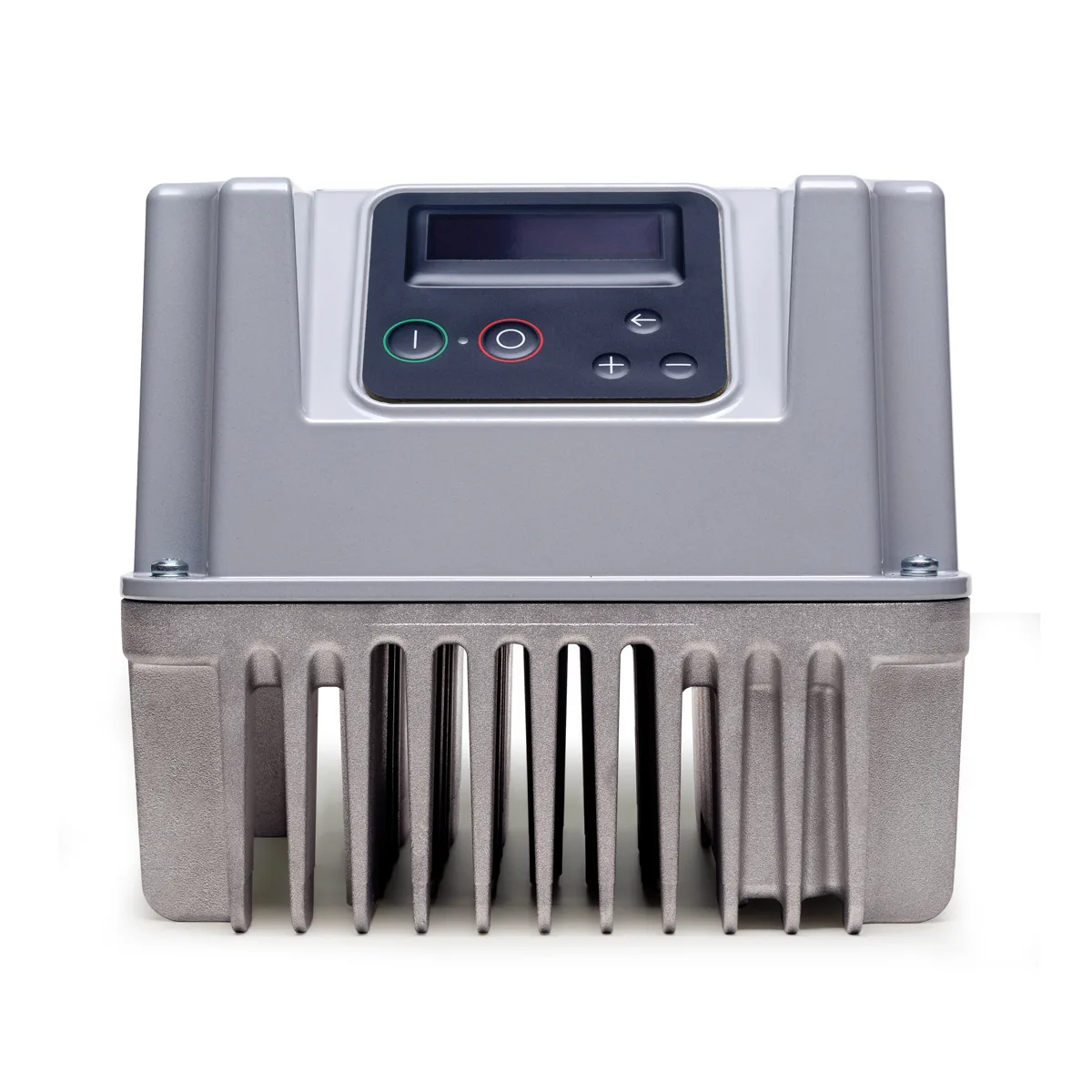

Device units are extremely compact and, connected to any pump on the market, will manage the operation of the pump to maintain a constant desired physical dimension (such as pressure, flow, temperature or other). The pumping system runs only at the speed necessary to meet the user’s requirements, ensuring energy savings and extending the life of the system. It also provides motor protection and monitoring, such as: protection against overload and dry running indication of input current and supply voltage integrated soft start and soft stop functions, extending the life of the system and reducing peak absorption recording running hours and loggings errors and alarms reported by the system It can control a second or third pump at constant speed DOL (DOL: Direct On Line) connect to other devices to get combined operation The compact body is constructed entirely of aluminium, making device extremely solid, lightweight and easily cooled, adding to the unit’s versatility. The IP55 degree of protection makes it possible to install it virtually anywhere, including humid and dusty environments. The illuminated liquid crystal display ensures it is easy to operate, and a buzzer provides an immediate indication of alarm.

Installing VASCO – VAriable Speed COntroller is simple and intuitive, requiring just a few quick steps

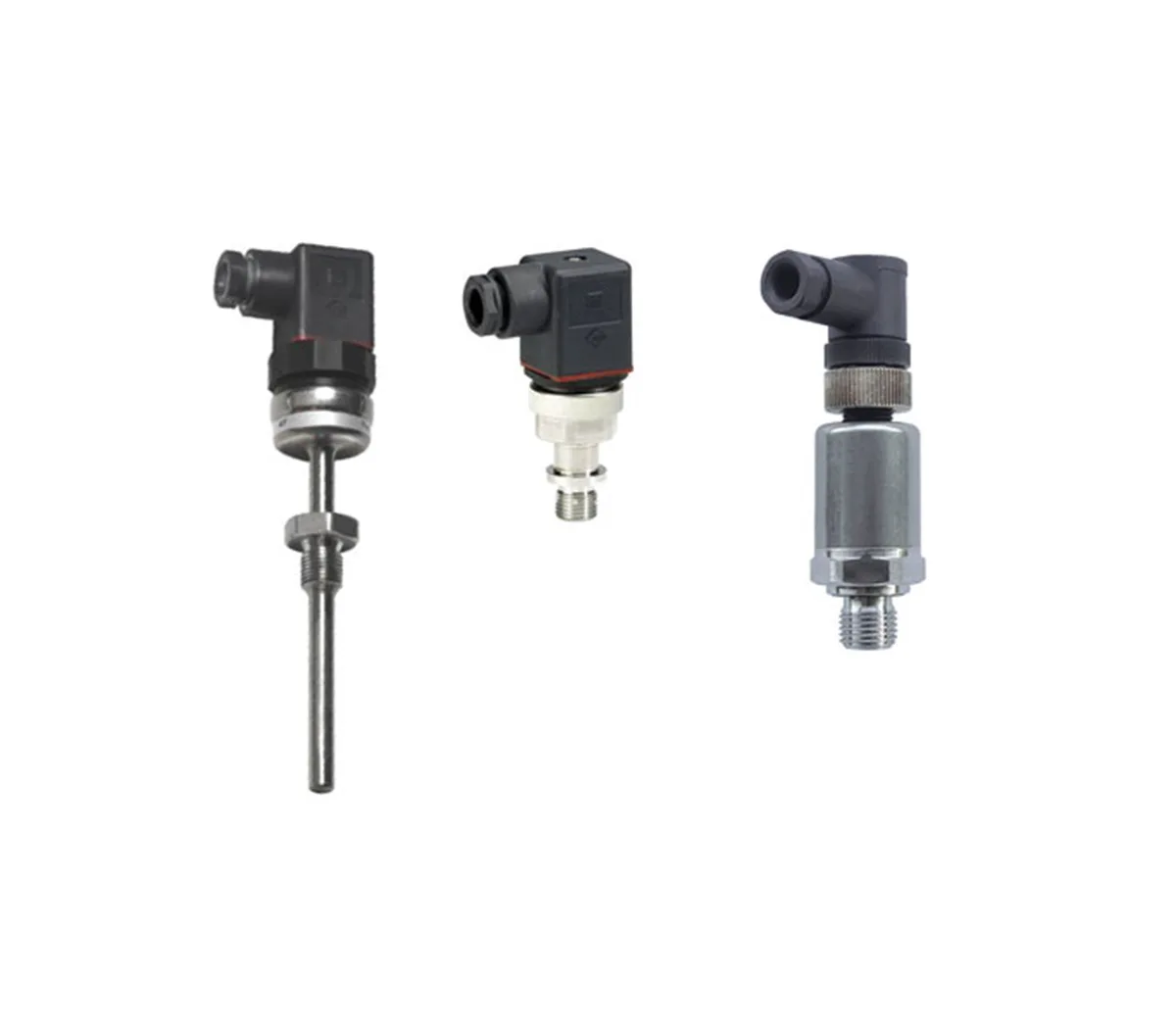

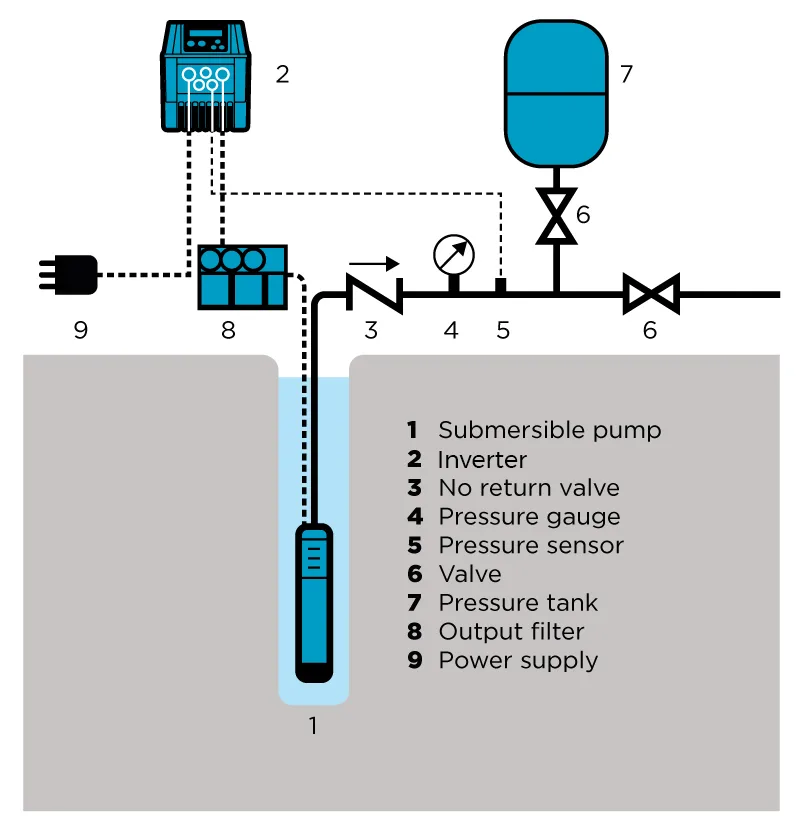

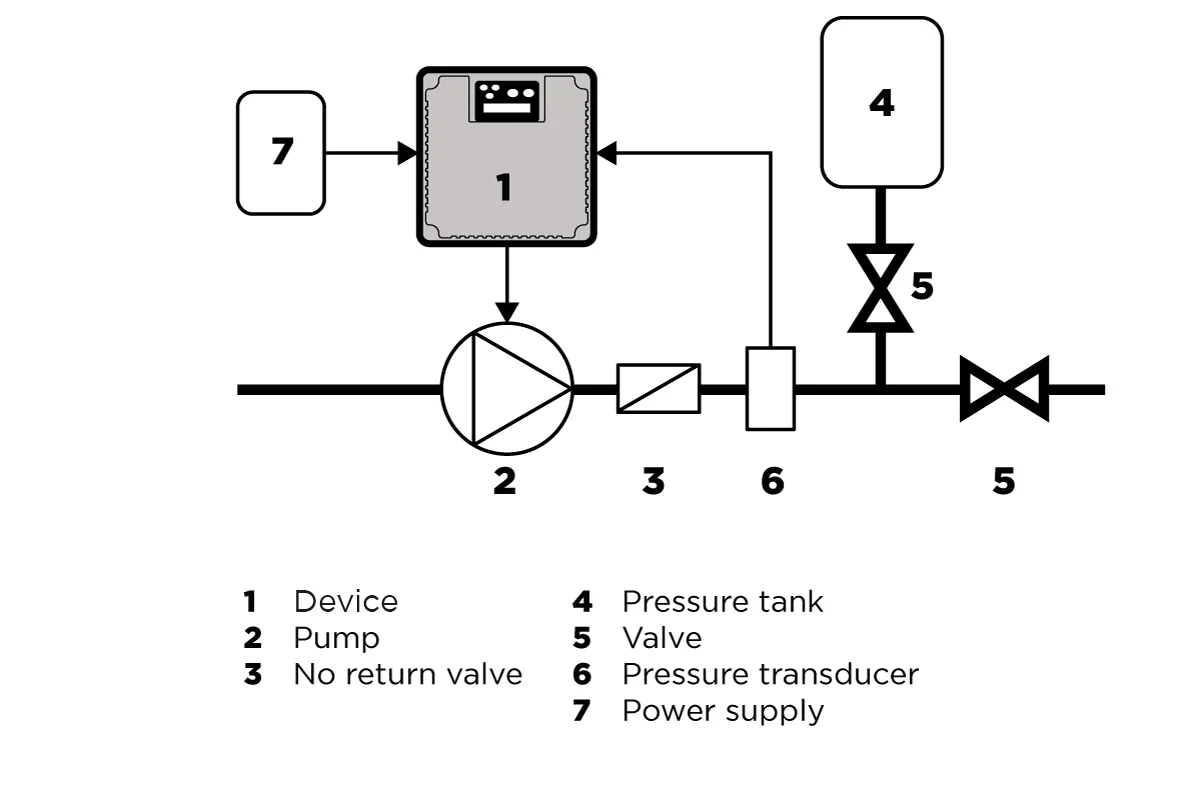

Connect device to the power supply. Connect device to the pump. Connect device to the sensor, located wherever in the piping you want to maintain the desired constant physical dimension (pressure, flow, liquid temperature, etc.) Set device to configure the pump to the system and the desired performance. When first powering the device, a quick initial wizard is required for complete configuration of the drive. Additional parameters can be configured later by entering three different setting levels: End user level. The only level which can be accessed without a password. It allows the user to monitor electrical and hydraulic parameters and the status of device and pump. Installer level. In this level the installer can configure pump system to the characteristics of the hydraulic system. A password is required. Advanced level. This level allows the electrical configuration of device according to the pump. Another password is required.

Motor kit

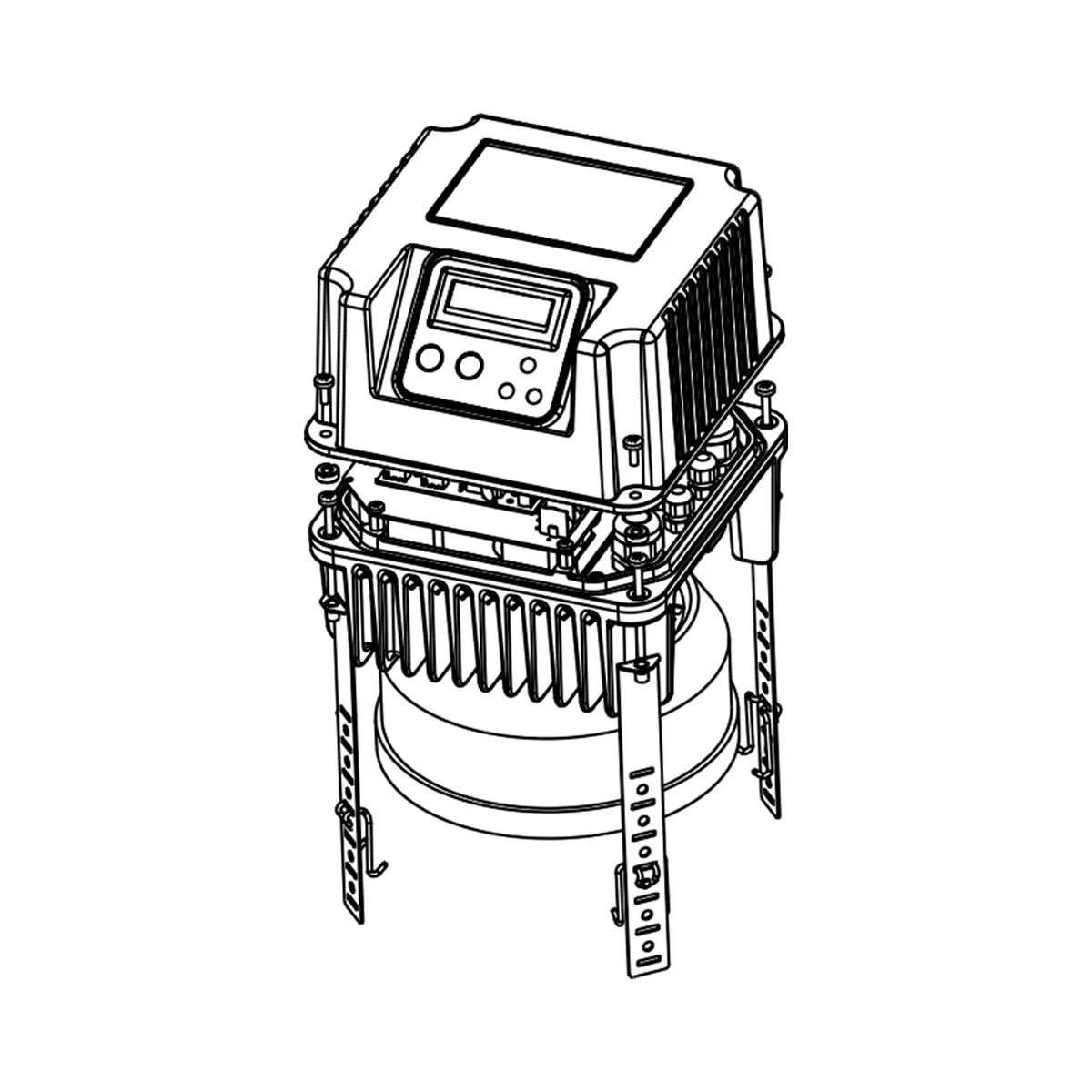

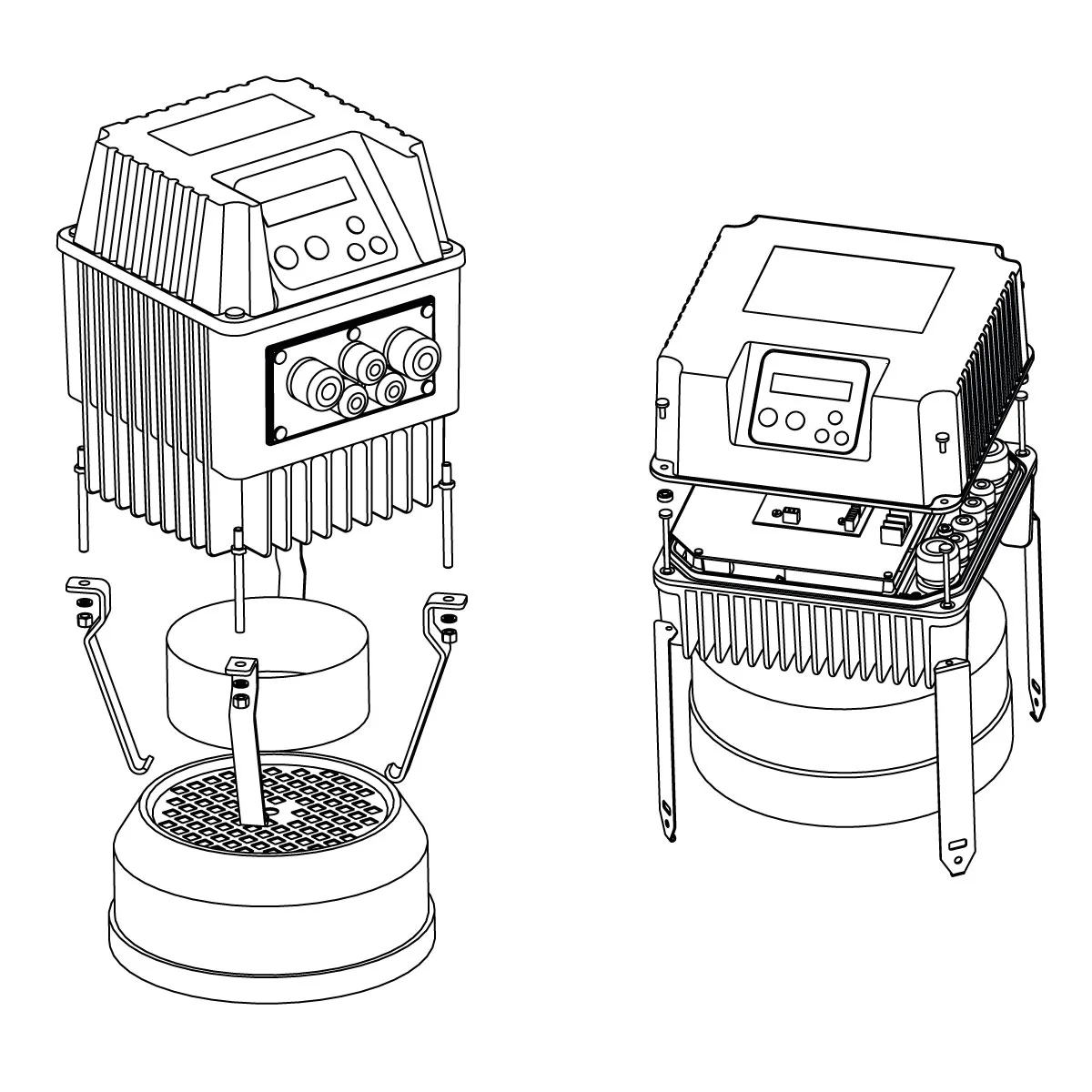

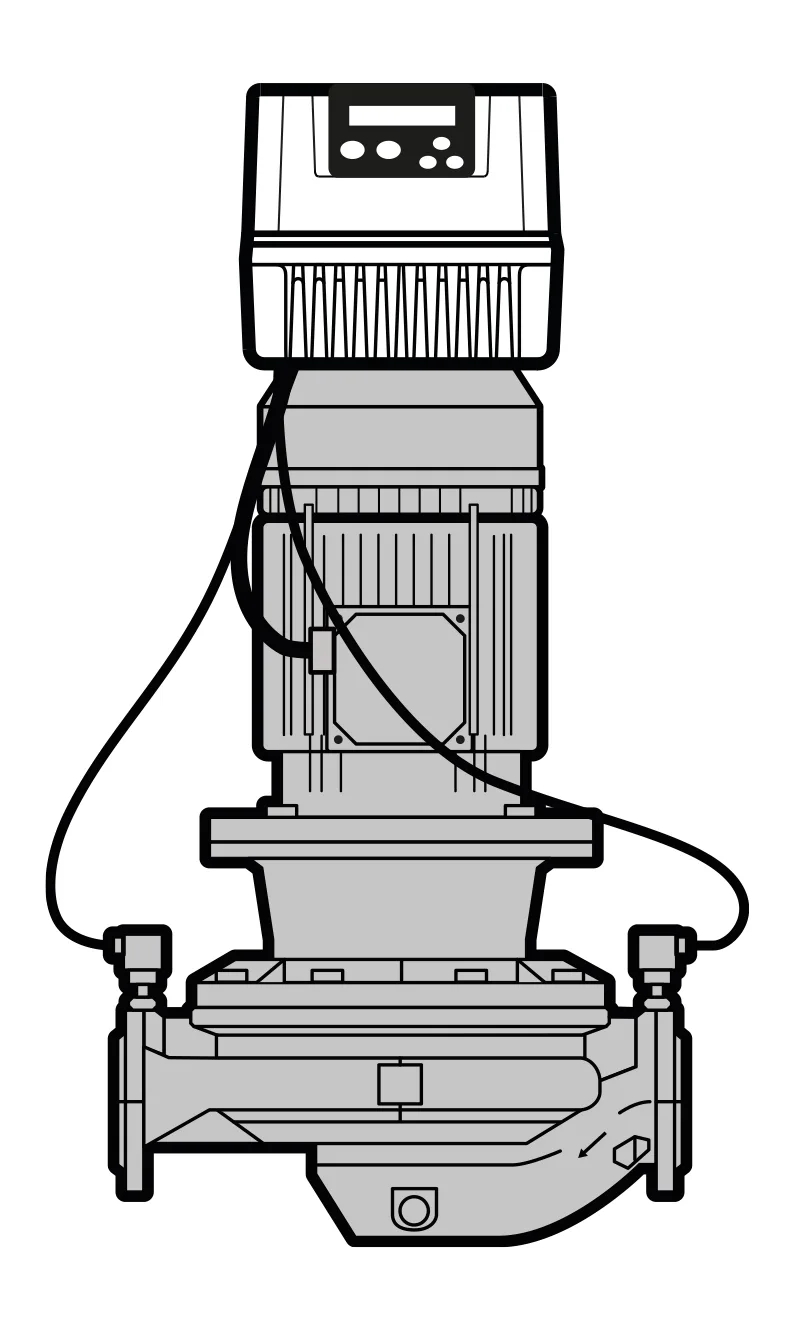

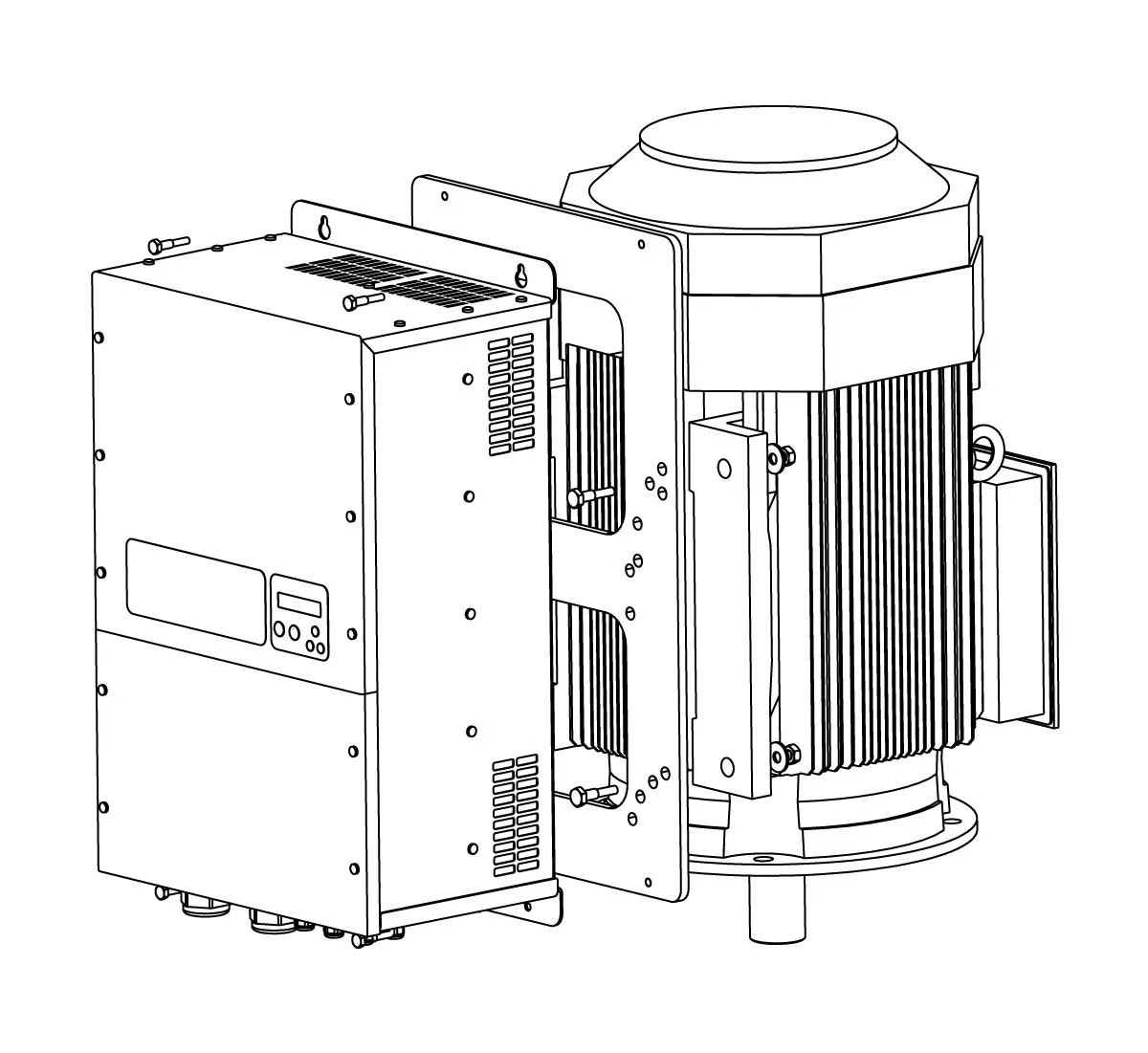

The device can be installed directly on the motor with a supplied installation kit. Motor kit It is cooled by the motor cooling fan. Motor kit consists of 4 special clamps (or flange adapter) to secure the device to the motor fan cover (or motor feet).

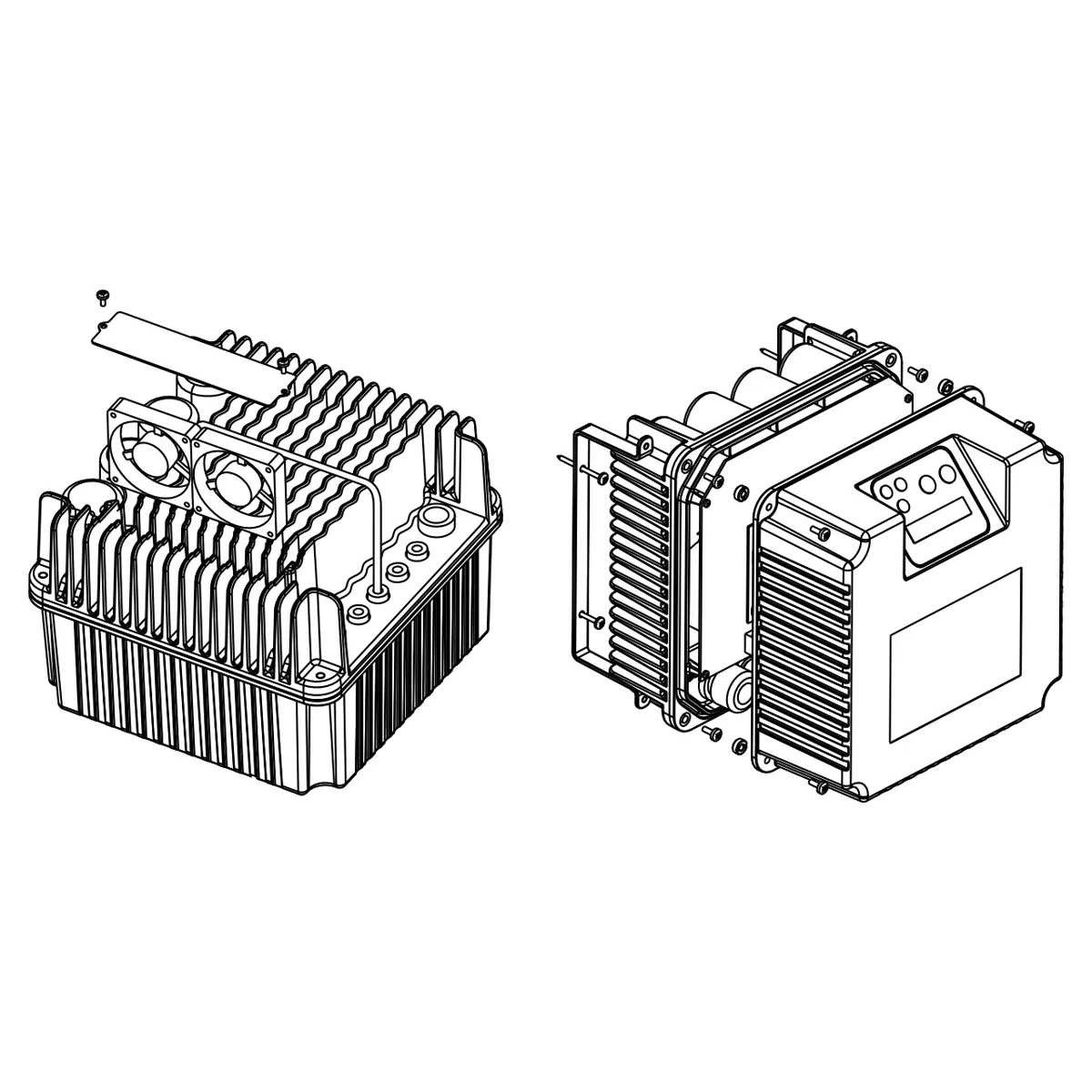

Wall kit

The device can be installed directly to the wall with a supplied installation kit. Wall kit It is cooled by an external cooling fan attached to the inverter radiator. A special metal bracket is supplied for device to be mounted on the wall.

Software implemented in each drive of VASCO – VAriable Speed COntroller range is the result of a long-time experience in solving customer requests and constantly following new drive applications.

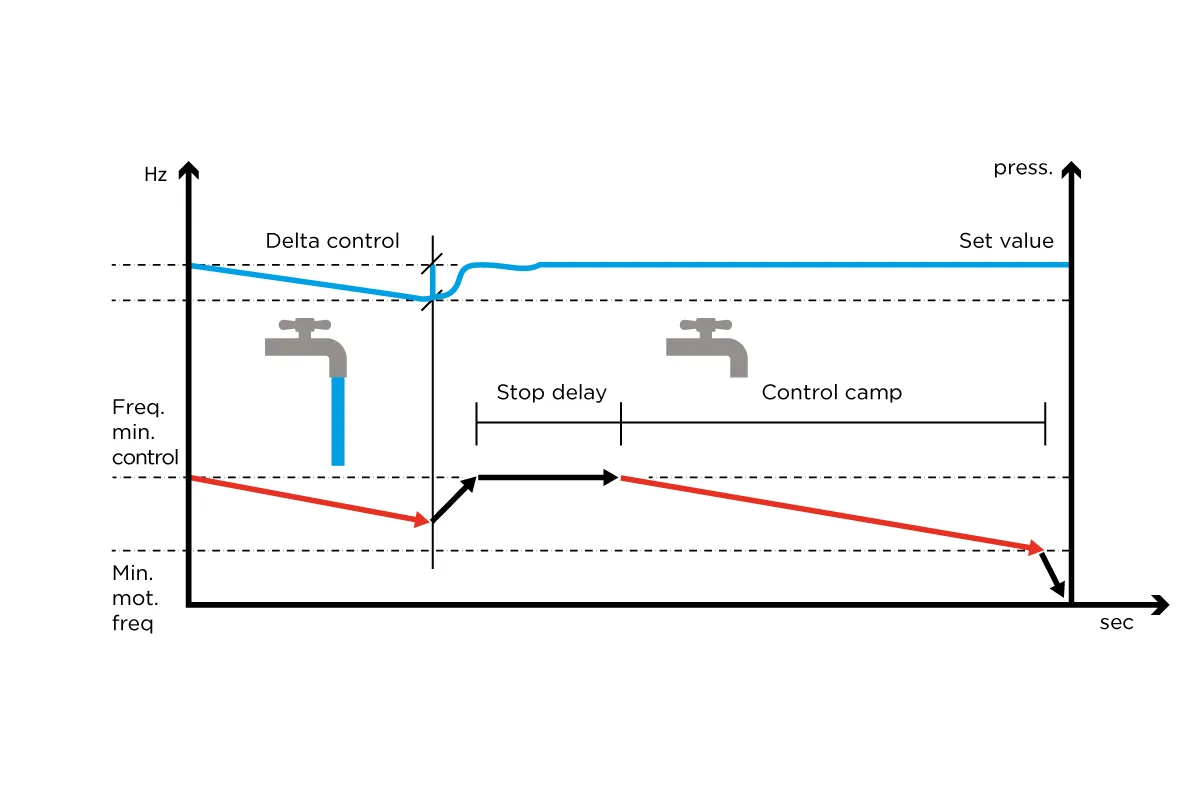

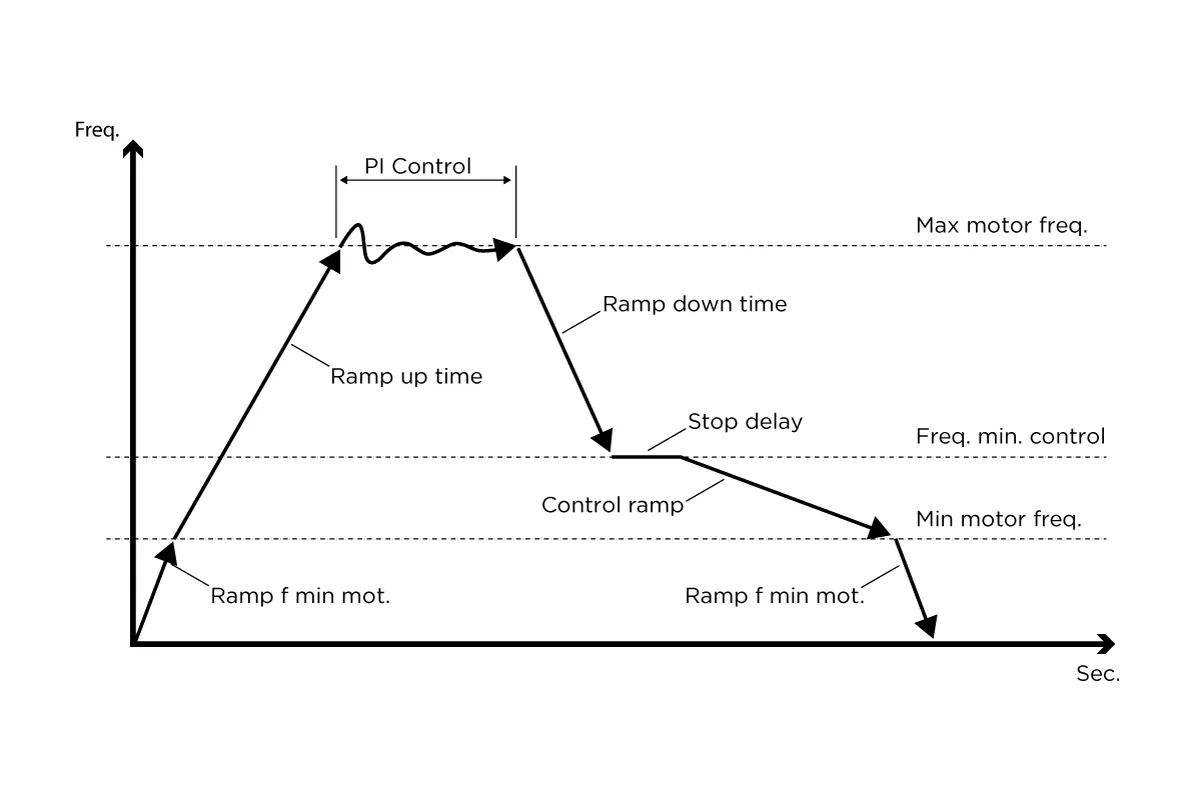

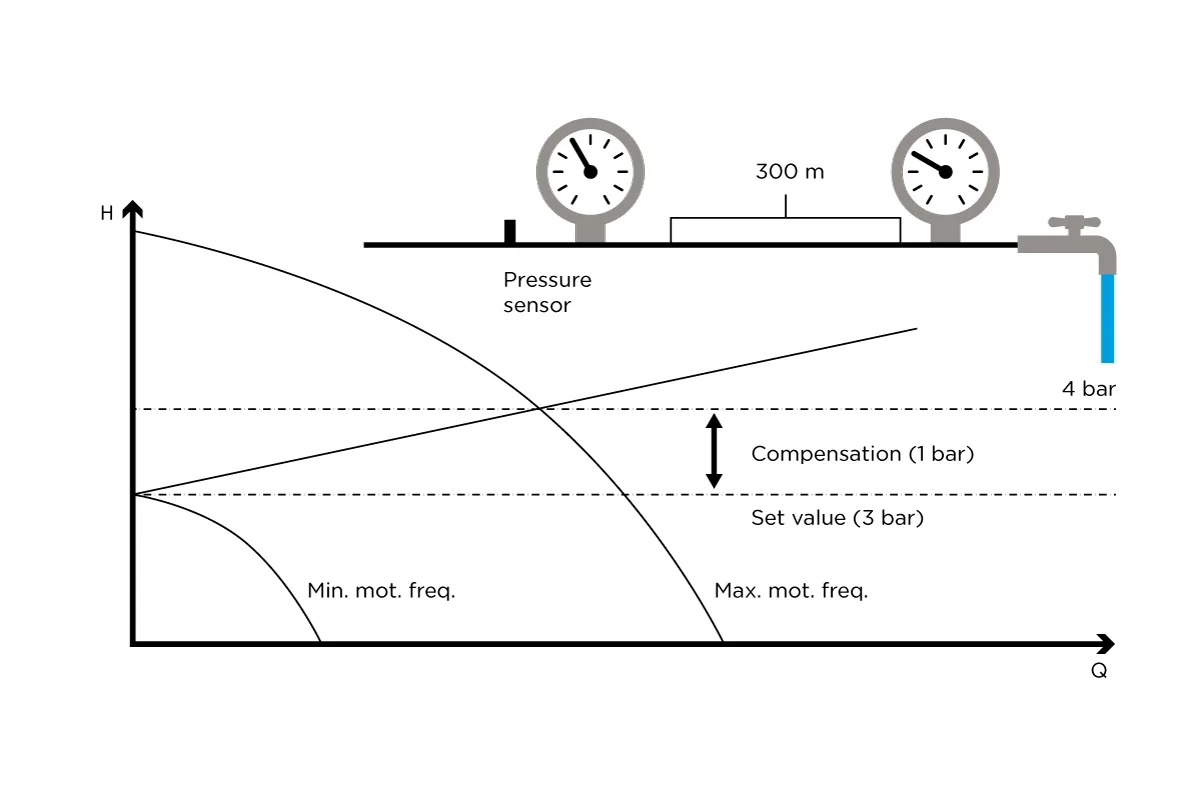

Minimum motor frequency. This parameter prevents motor operation below a certain frequency, thus avoiding damage to the thrust bearing of the submersible motors. Minimum motor frequency ramp. Motor can accelerate from 0 to the minimum motor frequency following a very fast ramp and then go through a slower ramp.
