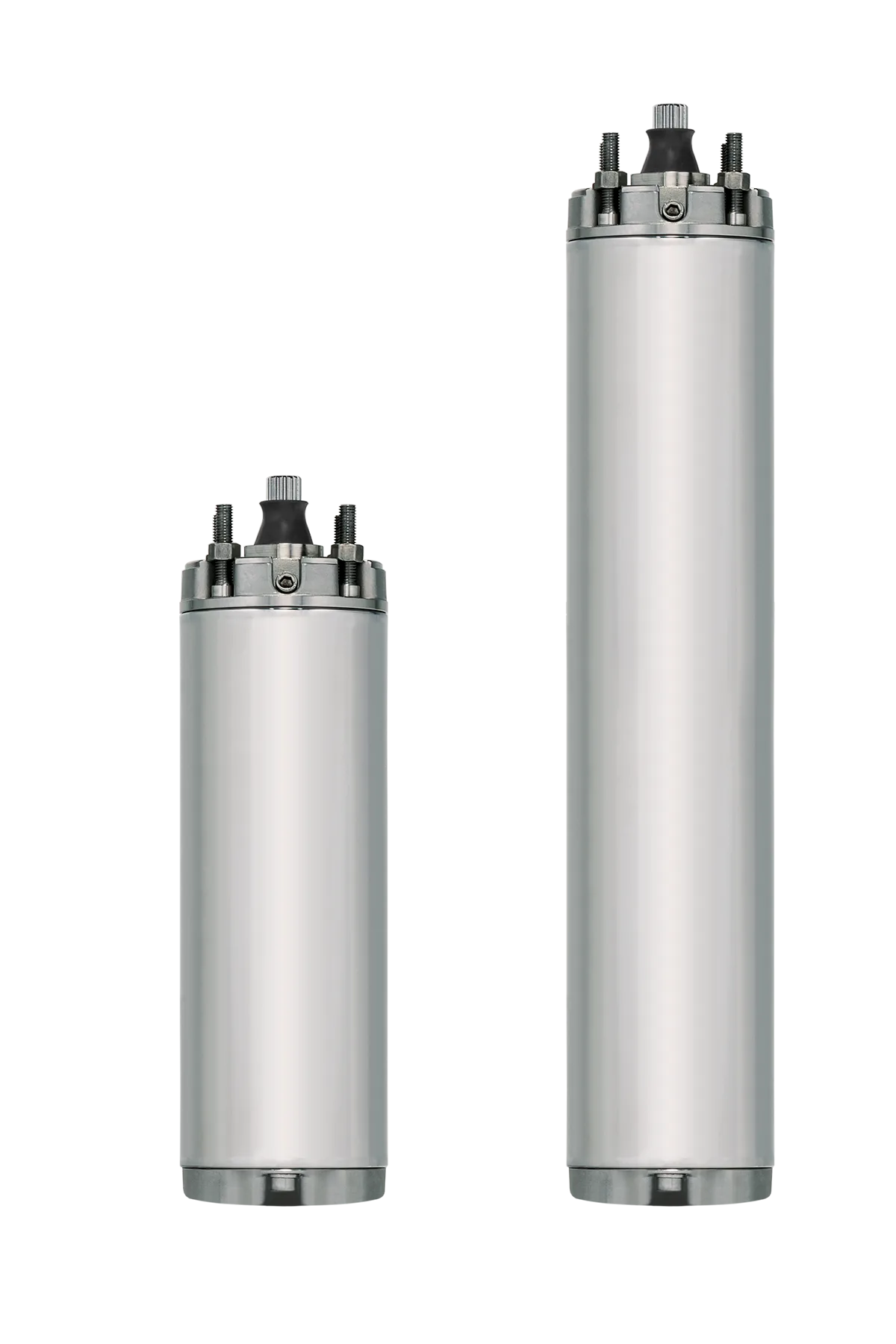

SUMMAG 4
SUMMAG 4 is the all new nastec range of submersible motors for best quality, highest efficiency borehole applications
Nastec, SUMMAG 4
NASTEC
Produktbeskrivelse
Produktinformasjon fra Nastec (engelsk).
SUMMAG 4 AAA.BBB.CCC.DD AAA: Rated power x 10 [kW] BBB: Rated voltage [VAC] CCC: Rated Frequency [Hz] DD: Alphanumeric code for optional construction features (00: standard execution). Example: SUMMAG 4 011.200.100.00
SPEC SHEET
Tekniske spesifikasjoner
Faktiske verdier per modell, be om datablad for konfigurasjon.
| Max liquid temperature | 35 °C (92 °F) |
|---|---|
| Min liquid cooling speed | 0.2 m/s (0,66 ft/s) |
| Characteristics of the pumped liquid | clean, chemically not aggressive, not explosive, without solid and fibre content, with max 50 g/m3 sand content |
| Cable | Flat cable ACS – WRAS – KTM approved |
| Engine coolant | 70% water + 30% glycol |
| Protection degree | IP68 |
| Maximum immersion depth | 150 m (492 ft) |
| Axial Thrust | 5000 N |
| Insulation class of windings | F |
NASTEC DATA
Modellvarianter
Fullstendige tekniske data per modell, fra Nastec.
Performances — SUMMAG 4 100 Hz, 3000 rpm
| Model SUMMAG 4 | Voltage VAC | Power P2 kW | Electric current A | η % |
|---|---|---|---|---|
| 011.200.100 | 3 x 200 | 0,550,751,1 | 2,334,1 | 808282 |
| 011.360.100 | 3 x 360 | 0,550,751,1 | 1,31,72,2 | 828385 |
| 022.200.100 | 3 x 200 | 1,11,52,2 | 4,15,57,8 | 848585 |
| 022.360.100 | 3 x 360 | 1,11,52,2 | 2,23,14,3 | 848687 |
| 040.200.100 | 3 x 200 | 2,233,74 | 7,810,512,813,8 | 85868787 |
| 040.360.100 | 3 x 360 | 2,233,74 | 4,45,97,17,7 | 86878888 |
| 075.360.100 | 3 x 360 | 45,57,5 | 7.910.614,2 | 868888 |
Performances — SUMMAG 4 120 Hz, 3600 rpm
| Model SUMMAG 4 | Voltage VAC | Power P2 (con S.F.) kW | Electric current (con S.F.) A | η % |
|---|---|---|---|---|
| 011.200.120 | 3 x 200 | 0,55 (0,8)0,75 (1,1)1,1 (1,4) | 2,2 (3,1)2,8 (4,1)4,1 (5,2) | 808282 |
| 011.360.120 | 3 x 360 | 0,55 (0,8)0,75 (1,1)1,1 (1,4) | 1,2 (1,7)1,6 (2,2)2,2 (3,0) | 828385 |
| 022.200.120 | 3 x 200 | 1,1 (1,4)1,5 (1,9)2,2 (2,5) | 4,0 (5,1)5,4 (6,8)7,8 (8,9) | 848585 |
| 022.360.120 | 3 x 360 | 1,1 (1,4)1,5 (1,9)2,2 (2,5) | 2,3 (3,1)3,0 (3,8)4,3 (5,0) | 848687 |
| 037.200.120 | 3 x 200 | 2,2 (2,5)3,7 (4,3) | 7,8 (8,9)12,7 (14,8) | 8586 |
| 037.360.120 | 3 x 360 | 2,2 (2,5)3,7 (4,3) | 4,4 (5,1)7,1 (8,2) | 8687 |
| 075.360.120 | 3 x 360 | 3,7 (4,3)5,5 (6,3)7,5 (8,6) | 7,2 (8,3)10,5 (12,0)14,2 (16,3) | 868888 |

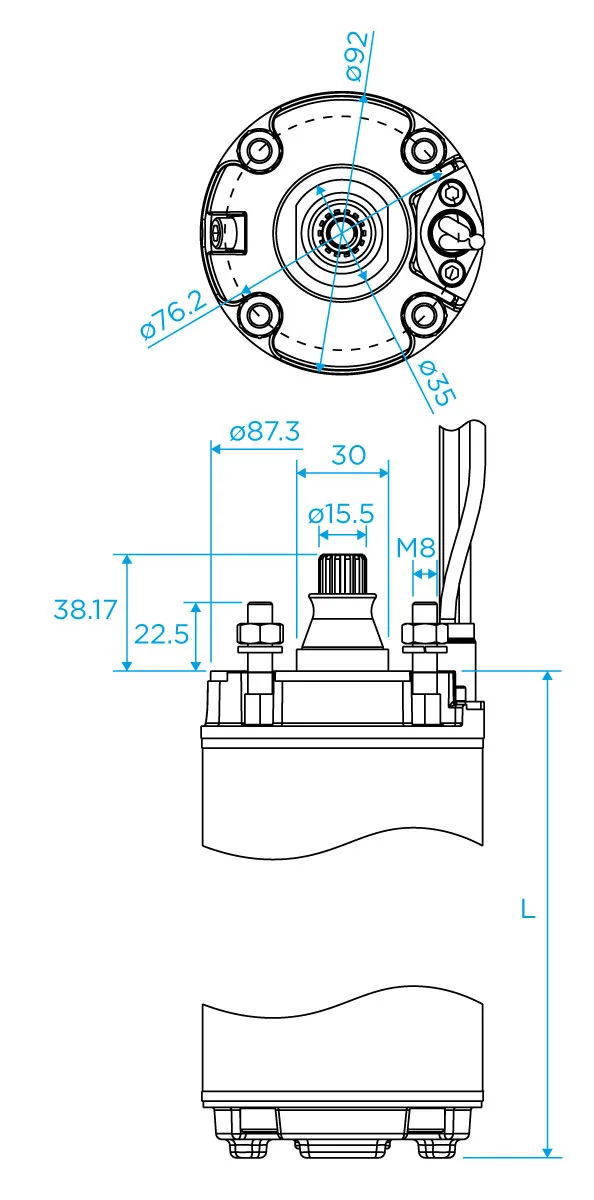

Weight and dimensions — SUMMAG 100 Hz, 3600 rpm
| P2 Power | L (mm) | Weight (kg) |
|---|---|---|
| 1,1 | 230 | 6,7 |
| 2,2 | 280 | 8,9 |
| 4,0 | 330 | 11,1 |
| 7,5 | 480 | 17,7 |

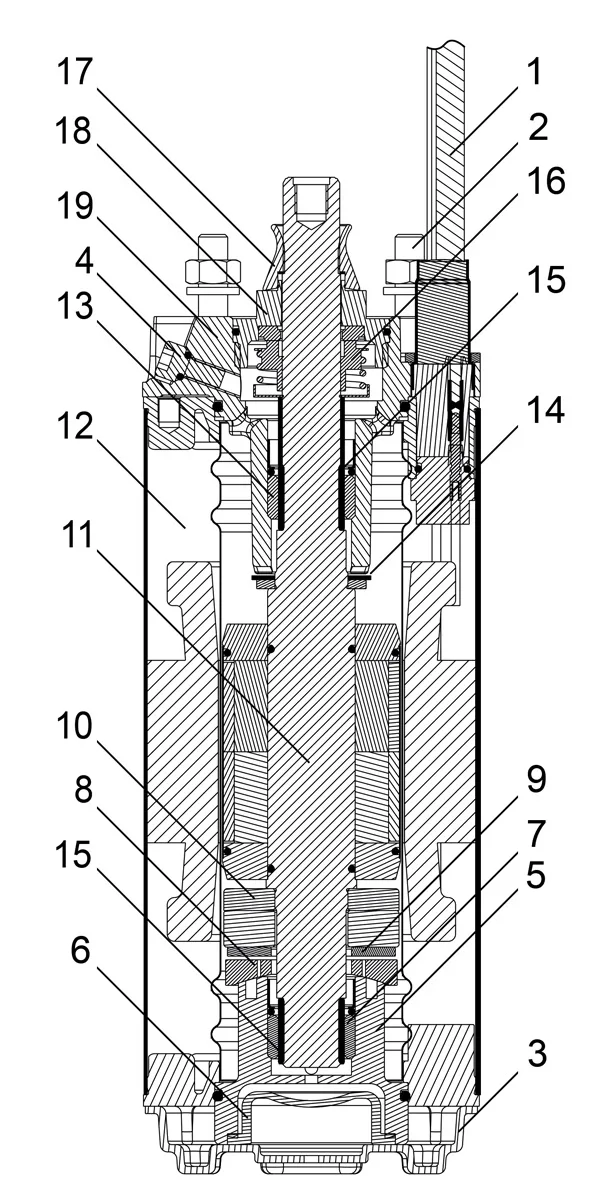

Materials
| RIF | Description | Material |
|---|---|---|
| 1 | Power supply cable with removable connector for drinking water applications | AISI 304 + ACS-KTM-WRAS compliant |
| 2 | M8 stud | AISI 304 |
| 3 | Lower support | AISI 304 |
| 4 | Screw for filling | AISI 304 |
| 5 | Thrust support | AISI 304 |
| 6 | Compensation bellows | EPDM |
| 7 | Lower bush | SiC |
| 8 | Tilting disc | AISI 304 |
| 9 | Pads | AISI420j |
| 10 | Rack | CTI25 |
| 11 | Motor shaft | AISI 431 |
| 12 | Canned type stator | AISI 304 |
| 13 | Upper bush | SiC |
| 14 | Upper thrust bearing | Teflon |
| 15 | Ceramized sleeve | AISI 304 + Ceramic |
| 16 | Mechanical seal | SiC |
| 17 | Rotating sandguard | NBR |
| 18 | Mechanical seal support | AISI 304 |
| 19 | Upper support | AISI 304 |
