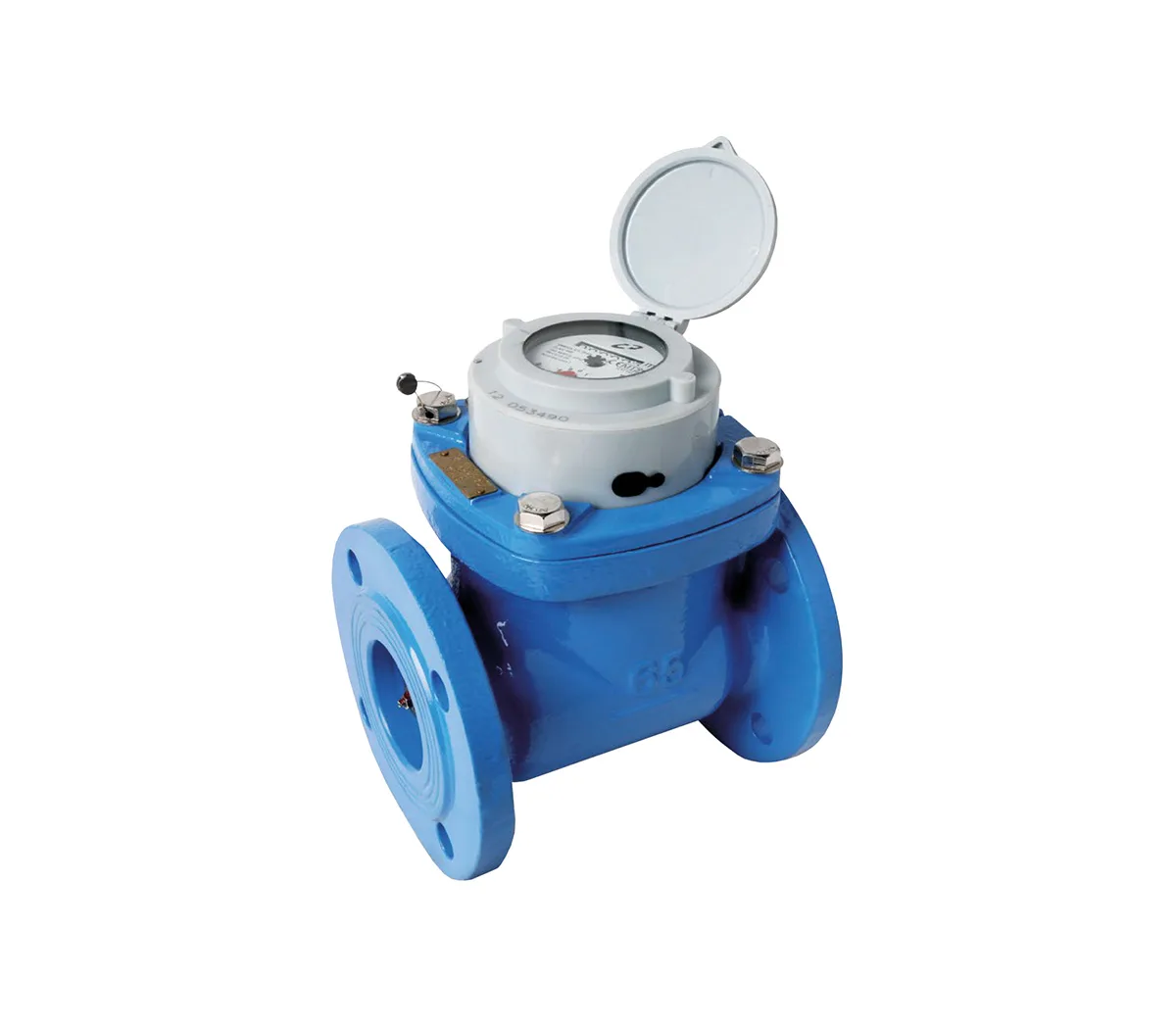

Flanged water meter
Device designed to measure the quantity of water, providing accurate readings of speed, volume, or mass of the pumped water
Produktbeskrivelse
Produktinformasjon fra Nastec (engelsk).
Accessories Solar energy products
Precise reading of the volume of water via analog indicator and pulsed signal (reed switch). Robust and long lasting construction. Available with flanged connections up to 8” (DN200) Maximum working pressure: 16 bar Maximum working temperature: 40 °C Degree of protection: IP64
Precise reading of the volume of water via analog indicator and pulsed signal (reed switch). Robust and long lasting construction. Available with male threaded connections up to 2 “G Maximum working pressure: 16 bar Maximum working temperature: 40 °C Degree of protection: IP64
Download the product sheet Go to the manual section
Modellvarianter
Fullstendige tekniske data per modell, fra Nastec.
Dimensions:
| Caliber mm | Caliber inches | L mm | H mm |
|---|---|---|---|
| 50 | 2” | 200 | 252 |
| 65 | 2”1/2 | 200 | 262 |
| 80 | 3” | 225 | 272 |
| 100 | 4” | 250 | 282 |
| 125 | 5” | 250 | 297 |
| 150 | 6” | 300 | 341 |
| 200 | 8” | 350 | 371 |
| 250 | 10” | 450 | 480 |
| 300 | 12” | 500 | 516 |
| 400 | 16” | 600 | 647 |
| 500 | 20” | 800 | 785 |

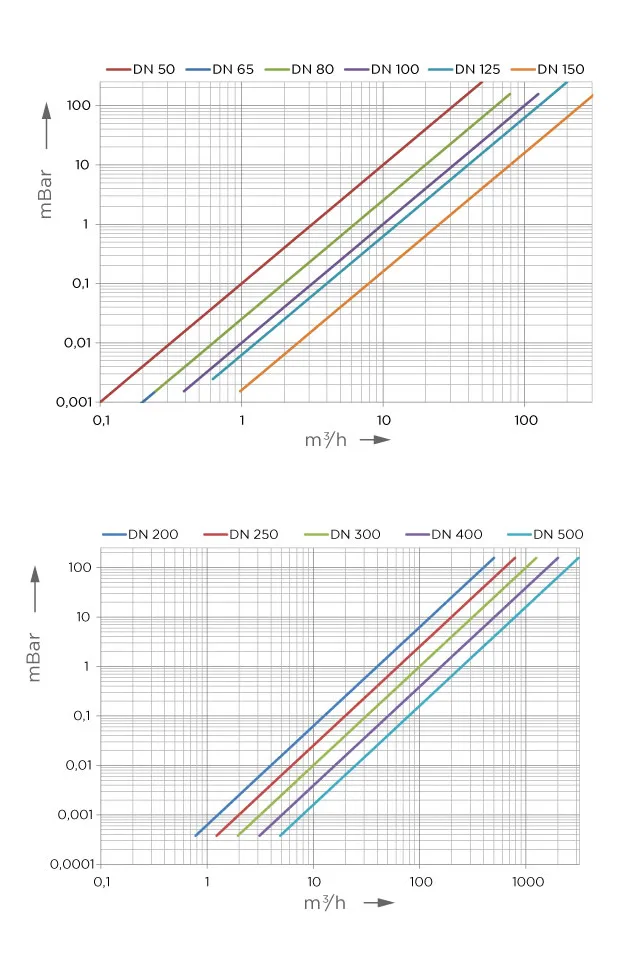

Performance
| Caliber mm | Caliber inches | Permanent flow Q3 m3/h | Max flow Q4 m3/h | Transition flow Q2 l/h | Min flow Q1 l/h | Working pressure** bar | Min reading l | Max reading m3 | Temperature class |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 2” | 40 | 50,00 | 800 | 500 | 16 | 0,5 | 999.999 | T30/T50 |
| 65 | 2”1/2 | 63 | 78,75 | 1260 | 788 | 16 | 0,5 | 999.999 | T30/T50 |
| 80 | 3” | 63 | 78,75 | 1260 | 788 | 16 | 0,5 | 999.999 | T30/T50 |
| 100 | 4” | 100 | 125,00 | 2000 | 1250 | 16 | 0,5 | 999.999 | T30/T50 |
| 125 | 5” | 160 | 200,00 | 3200 | 2000 | 16 | 0,5 | 999.999 | T30/T50 |
| 150 | 6” | 250 | 312,50 | 5000 | 3125 | 16 | 5 | 9.999.999 | T30/T50 |
| 200 | 8” | 400 | 500,00 | 8000 | 5000 | 16 | 5 | 9.999.999 | T30/T50 |
| 250 | 10” | 630 | 787,50 | 12600 | 7875 | 16 | 50 | 99.999.999 | T30/T50 |
| 300 | 12” | 1000 | 1250,00 | 20000 | 12500 | 16 | 50 | 99.999.999 | T30/T50 |
| 400 | 16” | 1600 | 2000,00 | 32000 | 20000 | 16 | 50 | 99.999.999 | T30/T50 |
| 500 | 20” | 2500 | 3125,00 | 50000 | 31250 | 16 | 50 | 99.999.999 | T30/T50 |
Dimensions:
| Calibro mm | Calibro pollici | L mm | H mm |
|---|---|---|---|
| 13/15 | 1/2” | 110 – 145 165 – 170 | 105 |
| 20 | 3/4” | 160 – 190 | 110 |
| 25 | 1” | 160 – 260 | 115 |
| 30 | 1”1/4 | 160 – 260 | 120 |
| 40 | 1”1/2 | 200 – 300 | 150 |
| 50 | 2” | 300 | 180 fil 190 fla |

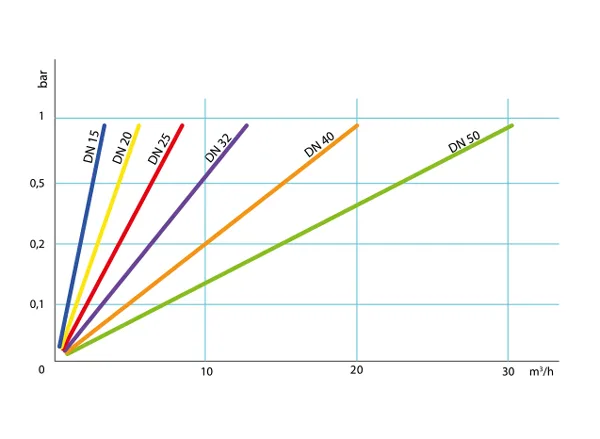

Performance
| Caliber mm | Caliber inches | Permanent flow Q3 m3/h | Max flow Q4 m3/h | Transition flow Q2 l/h | Min flow Q1 l/h | Working pressure** bar | Min reading l | Max reading m3 | Temperature class |
|---|---|---|---|---|---|---|---|---|---|
| 13/15 | 1/2” | 2,5 | 3,125 | 50,0 | 31,3 | 16 | 0,05 | 99.999 | T30/T50 |
| 20 | 3/4” | 4,0 | 5,000 | 80,0 | 50,0 | 16 | 0,05 | 99.999 | T30/T50 |
| 25 | 1” | 6,3 | 7,875 | 126,0 | 78,8 | 16 | 0,05 | 99.999 | T30/T50 |
| 30 | 1”1/4 | 10,0 | 12,500 | 200,0 | 125,0 | 16 | 0,05 | 99.999 | T30/T50 |
| 40 | 1”1/2 | 16,0 | 20,000 | 320,0 | 200,0 | 16 | 0,5 | 999.999 | T30/T50 |
| 50 | 2” | 25,0 | 31,250 | 500,0 | 312,5 | 16 | 0,5 | 999.999 | T30/T50 |
